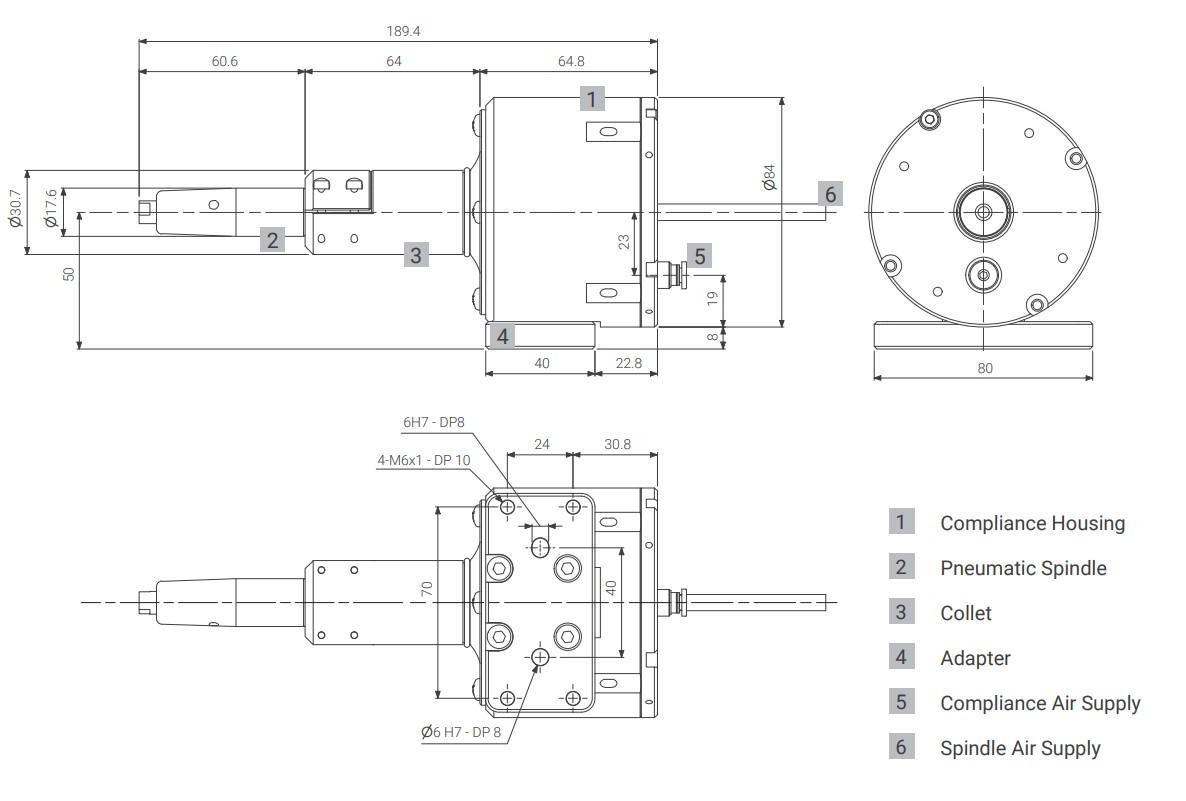

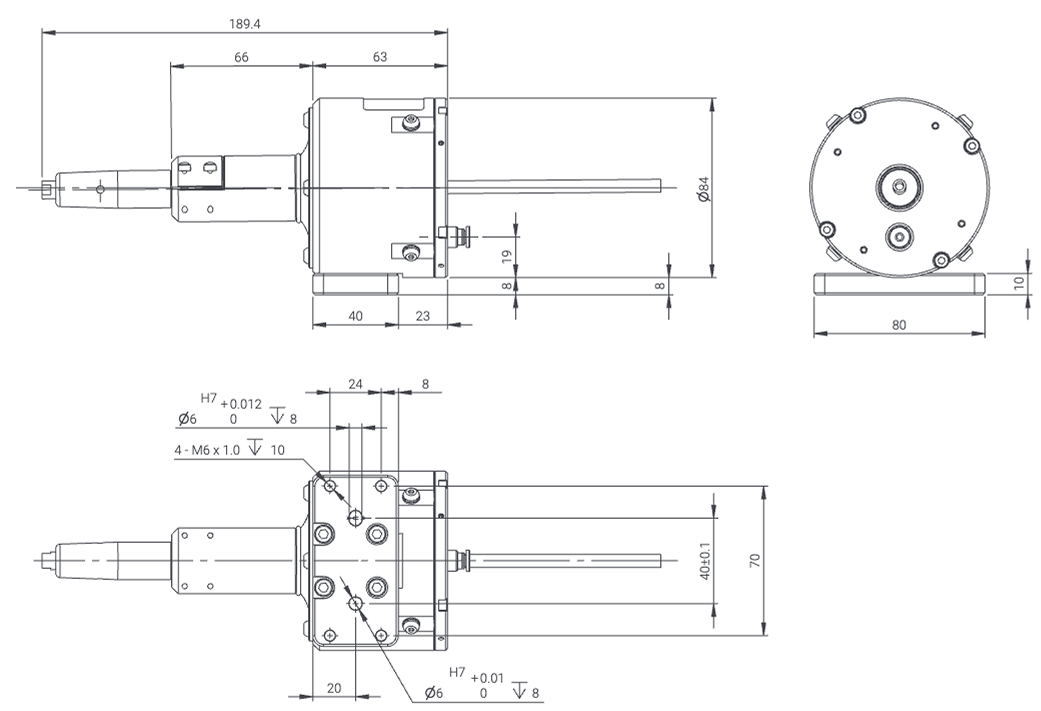

RC100 is a pneumatic compliance force tool with 360-degree radial compliance, featuring a built-in 65,000 RPM ultra-high-speed spindle. It is designed for light-duty deburring and fine grinding on small parts and detailed areas. With stable and adjustable compliance force, its stroke compensates for edge interference and contact variation, making it ideal for high-sensitivity robotic finishing applications.
Good for small burrs on complex curved edges
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ3/Milling Bur |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 2-10N |
| Power | N/A |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 1.3 kg (2.87 lb) |
| Dimensions (L x W x H) | 195 x 82 x 92 mm (7.68 x 3.23 x 3.62 in) |
| Speed | 65000 RPM |
| Air Consumption | 150 LPM (L/min) |

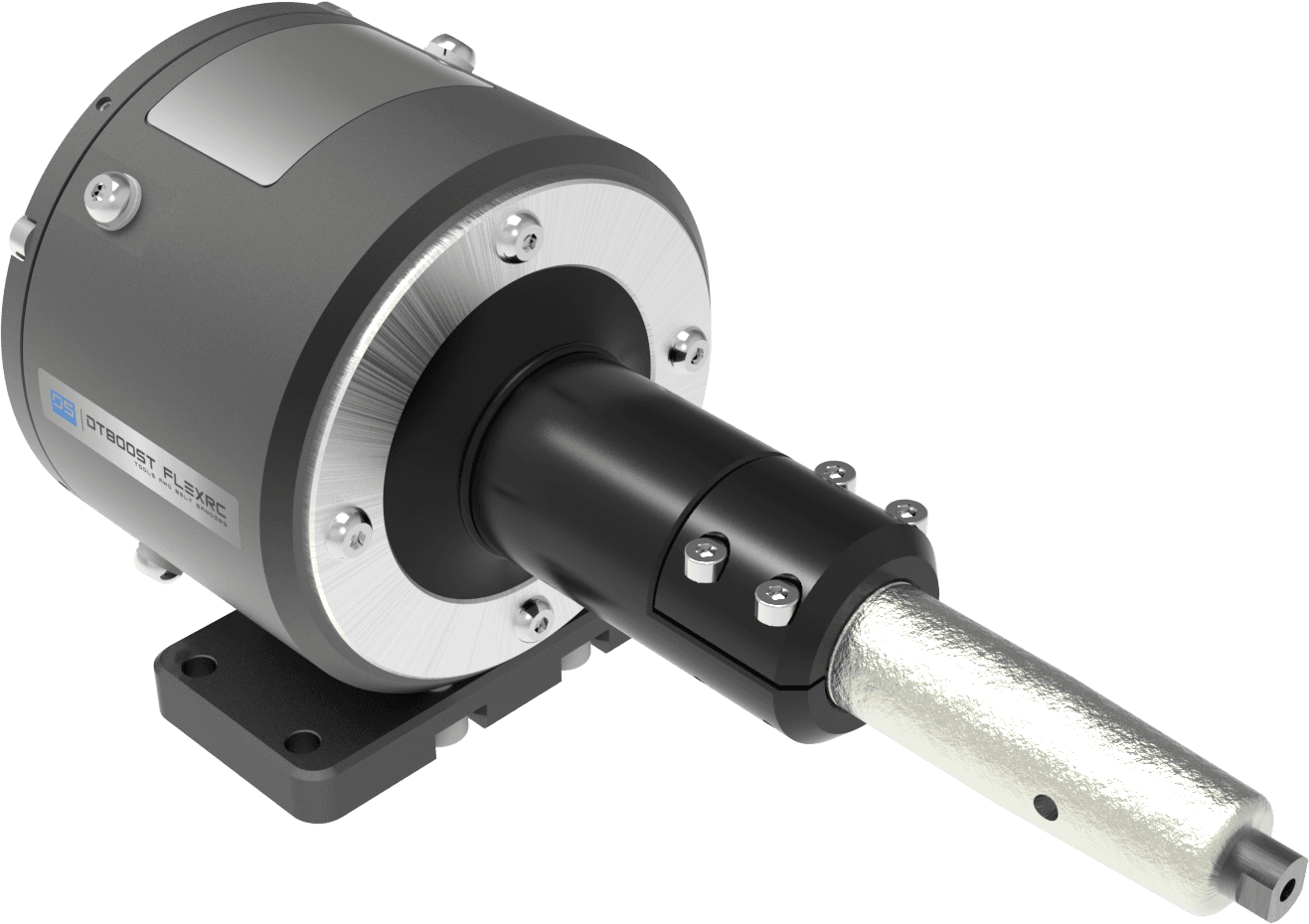

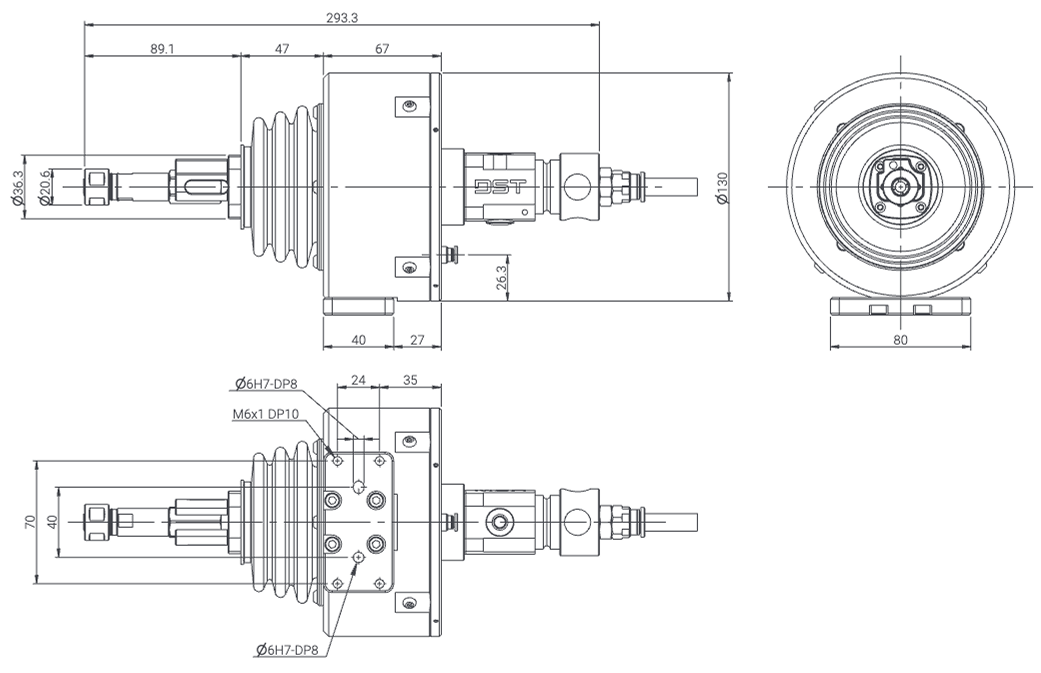

RC100F is a pneumatic compliance force tool with 360-degree radial compliance, specially developed for file-type tools. It offers stable and adjustable force, with a compliance stroke that adapts to changes in contoured or detailed surfaces. Ideal for fine finishing and deburring of small parts, tight corners, and precision areas where consistency and sensitivity are critical.
Good for small burrs on complex curved edges
Aluminum, copper, steel, plastic, composite materials, and wood.
| Functions | Pneumatic File |
| Collet Size | Φ6 / File |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 12-30 N |
| Power | N/A |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 3 kg (6.61 lb) |
| Dimensions (L x W x H) | 300 x 130 x 138 mm (11.81 x 5.12 x 5.43 in) |
| Reciprocating Frequency / Stroke | 5000 BPM / 10 mm |
| Air Consumption | 170 LPM (L/min) |
| Optional: A high-force compliance version is available for large or high-hardness workpieces. | |

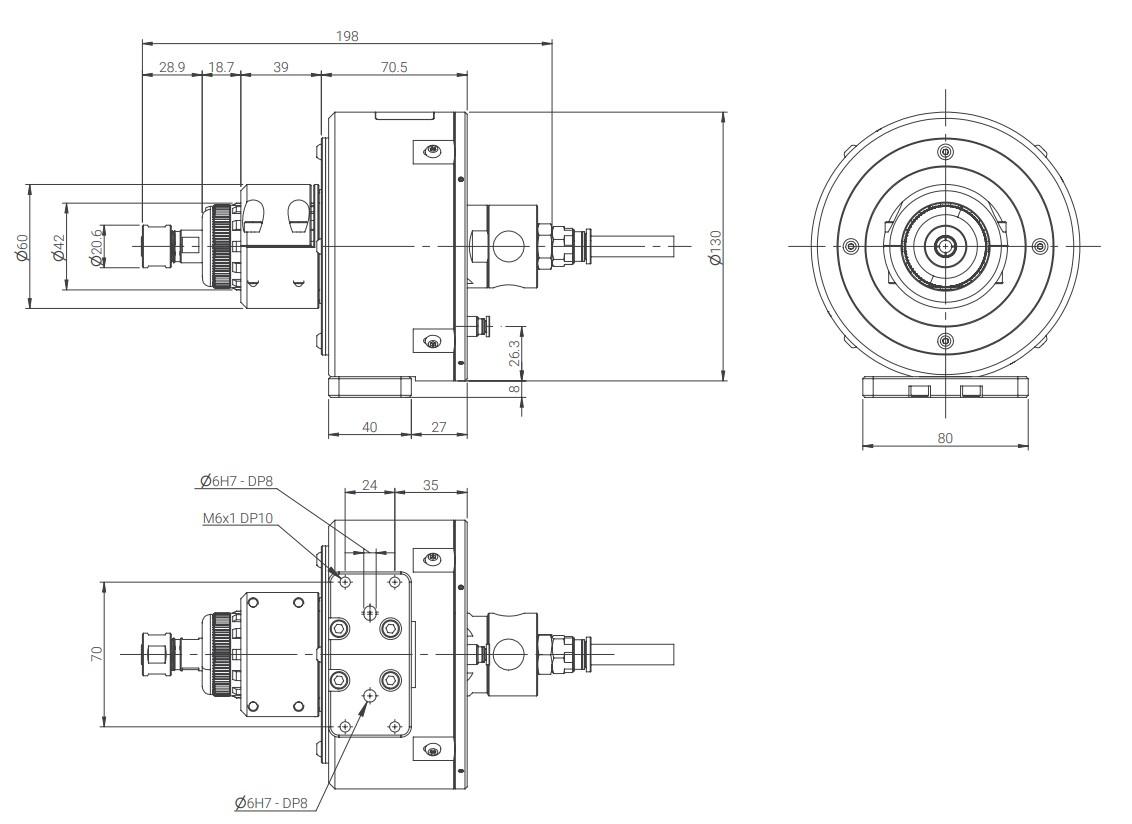

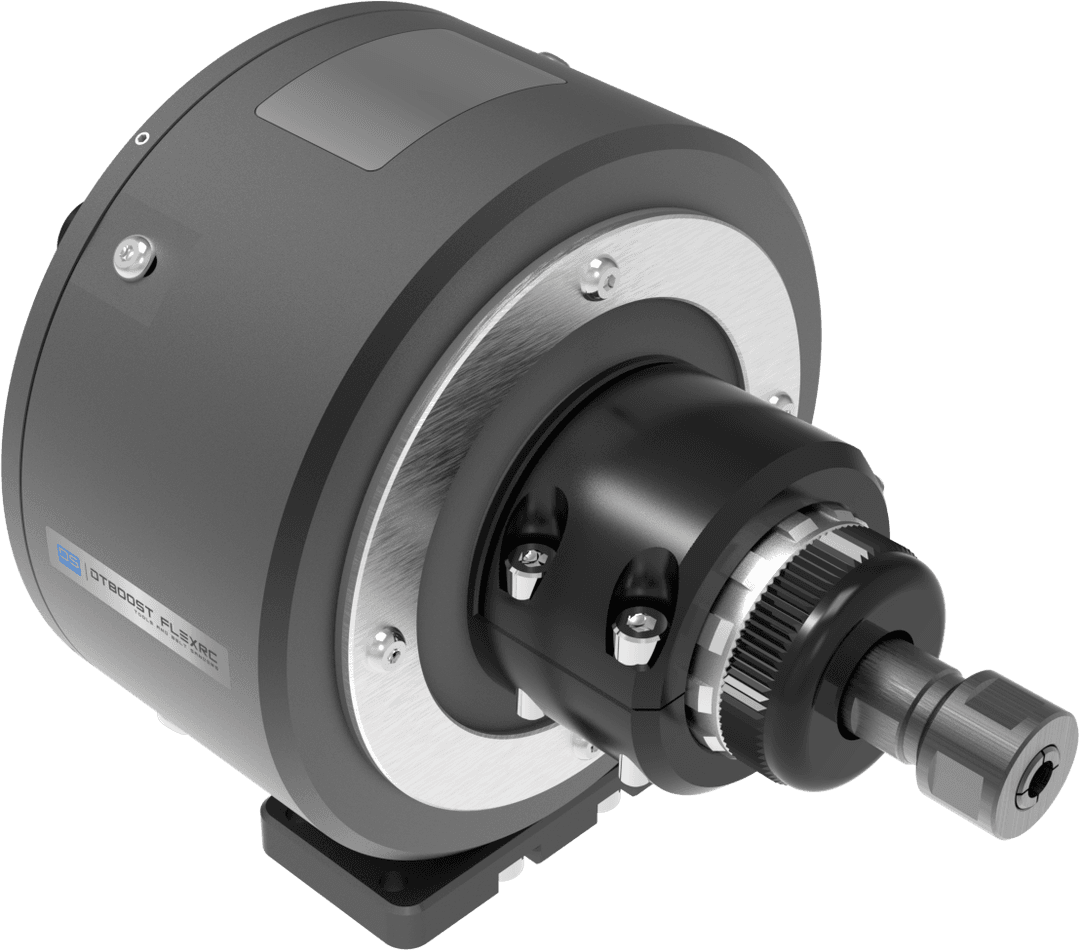

RC300S is a short-body pneumatic radial compliance force tool offering stable, adjustable force with a maximum compliance force of 46N. It features high sensitivity and full 360-degree radial compliance capability, enabling precise operation in tight gaps and on irregular surfaces. The tool compensates for path and contact variations, making it ideal for automated deburring and surface finishing tasks that demand strong, consistent contact force.
Good for Large Burrs on Complex Curved Edges
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 18.4-46N |
| Power | 0.5kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3kg (6.61 lbs) |
| Dimensions (L x W x H) | 198 x 130 x 138 mm (7.8 x 5.1 x 5.4 in) |
| Speed | 16000 RPM |
| Air Consumption | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness materials. | |

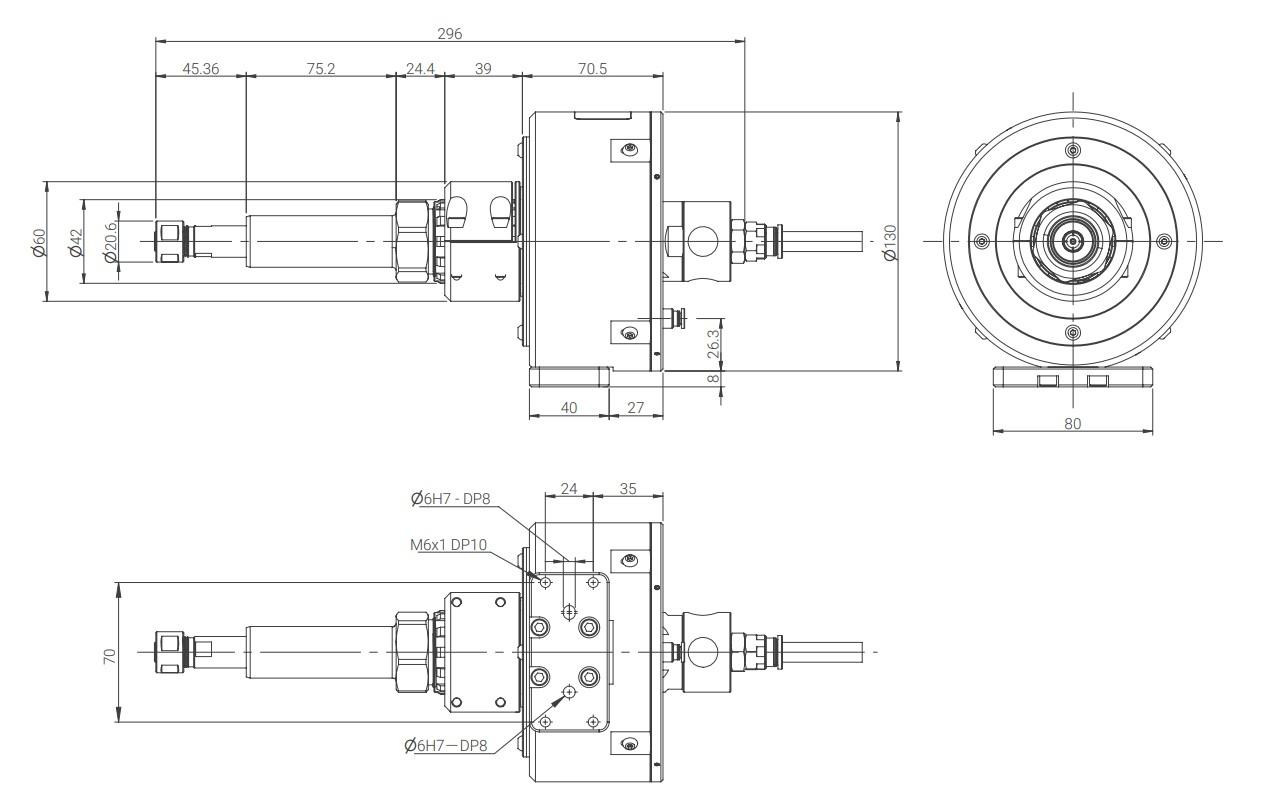

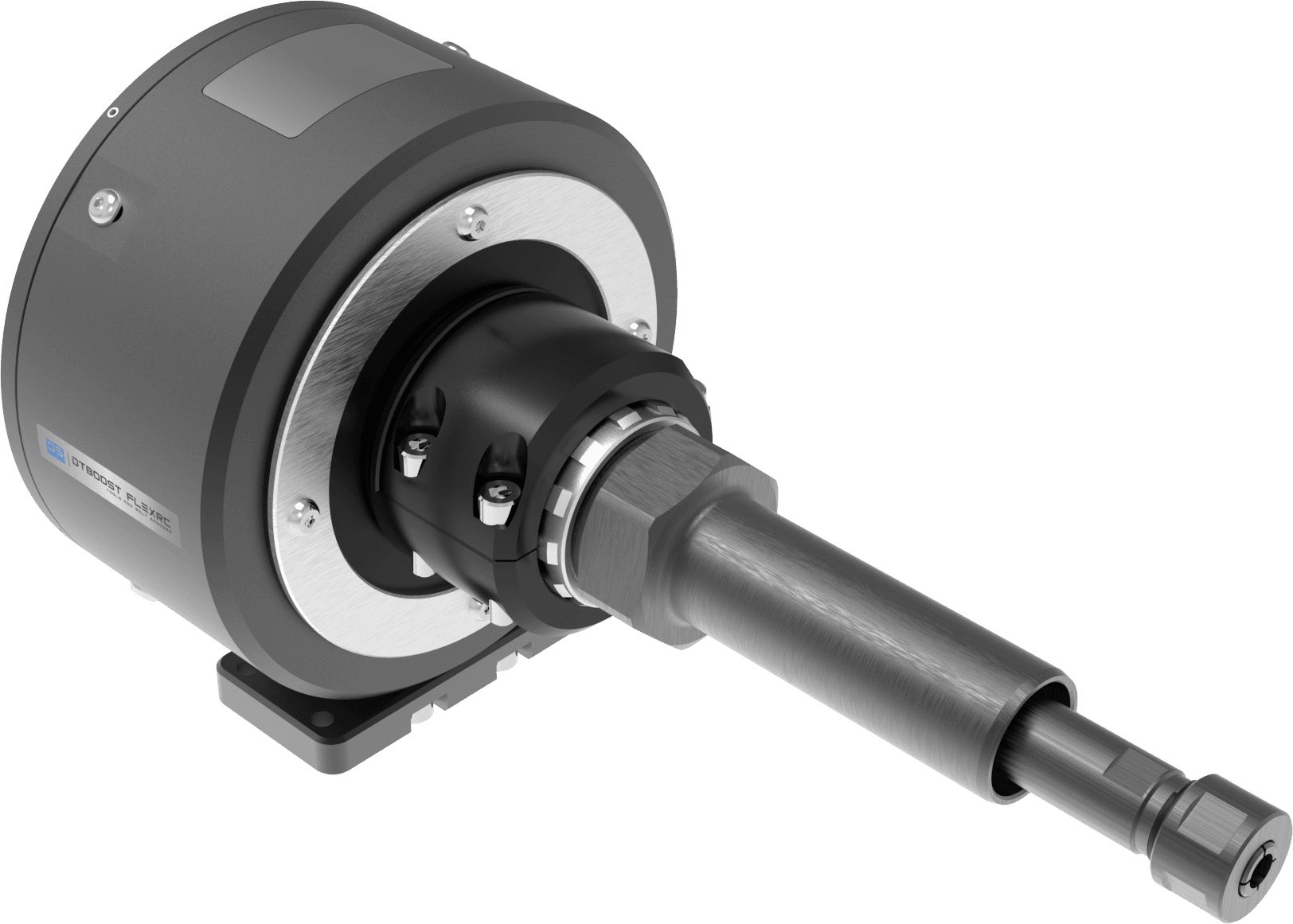

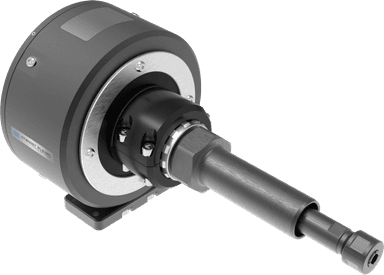

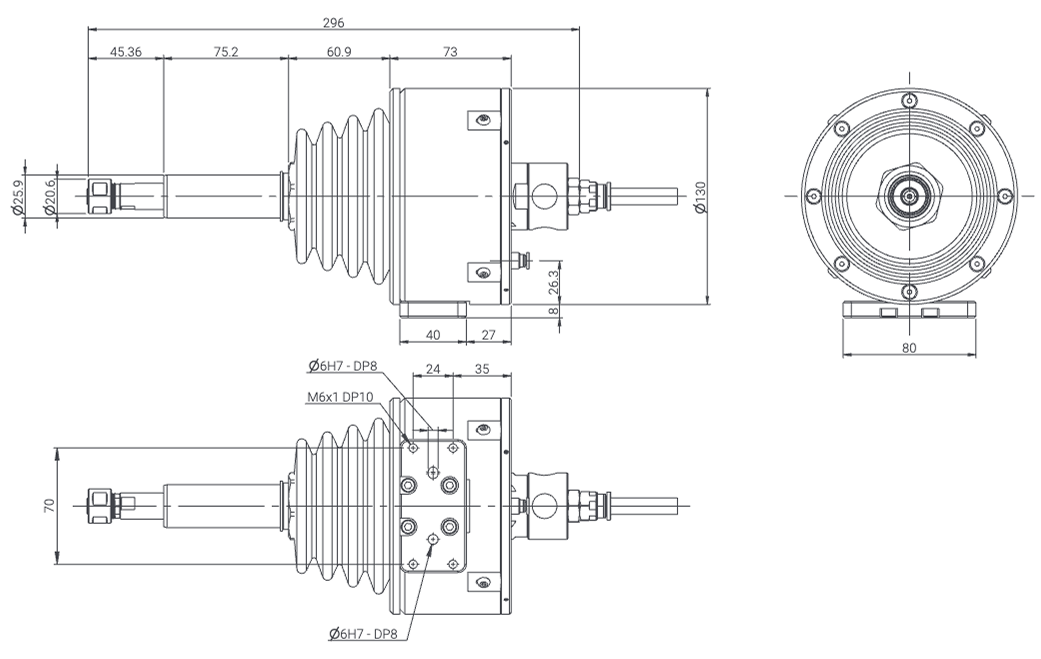

RC300M is a pneumatic radial compliance force tool with stable and adjustable force, supporting 360-degree compliance capability. Its standard structure features a longer spindle than the RC300S, helping reduce interference and improve integration flexibility and processing stability. Ideal for a wide range of automated deburring and surface finishing applications, it is one of the most versatile models in the RC series.
Good for Large Burrs on Complex Curved Edges
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 9.6-24N |
| Power | 0.5kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3.2kg (7.0 lbs) |
| Dimensions (L x W x H) | 296 x 130 x 138 mm (11.6 x 5.1 x 5.4 in) |
| Speed | 16000 RPM |
| Air Consumption | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness burrs. | |

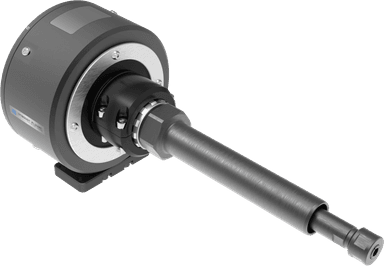

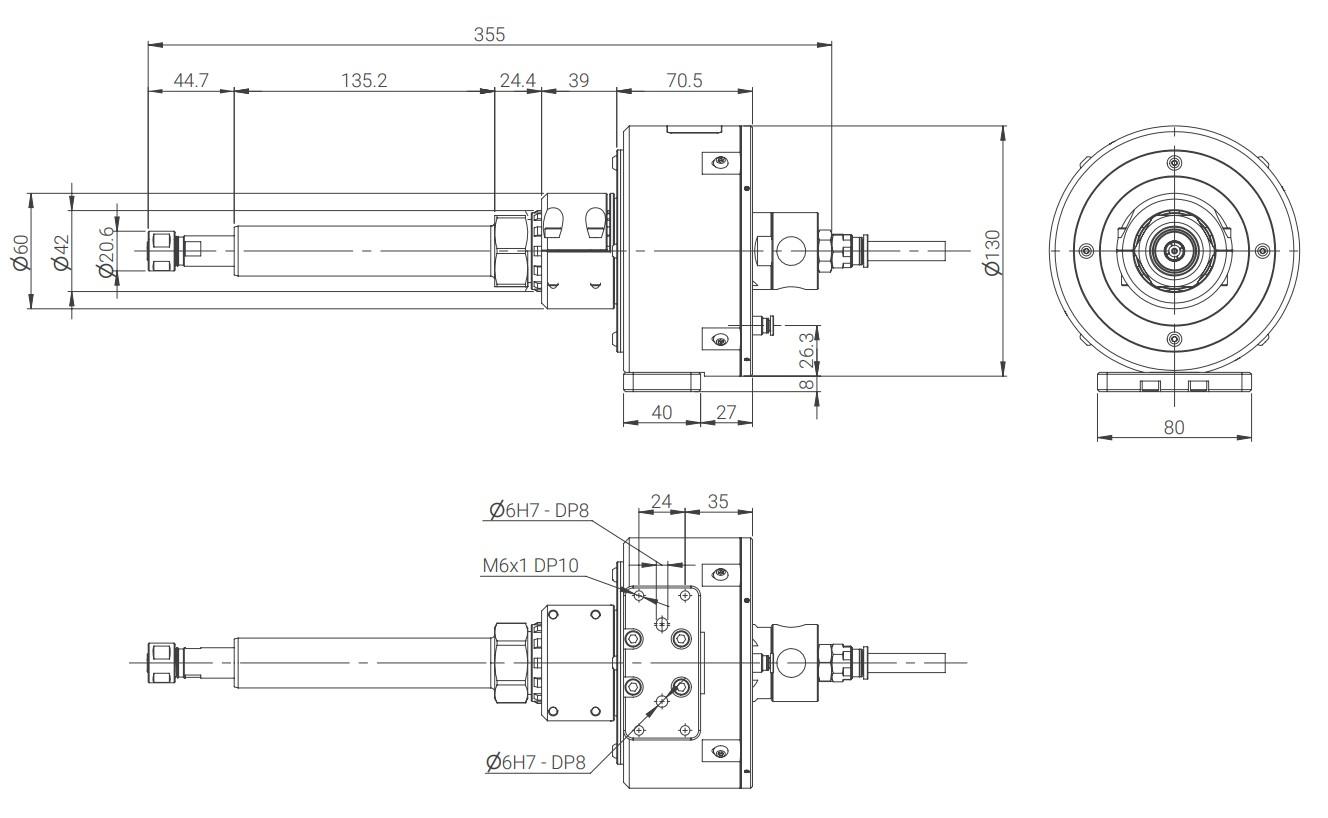

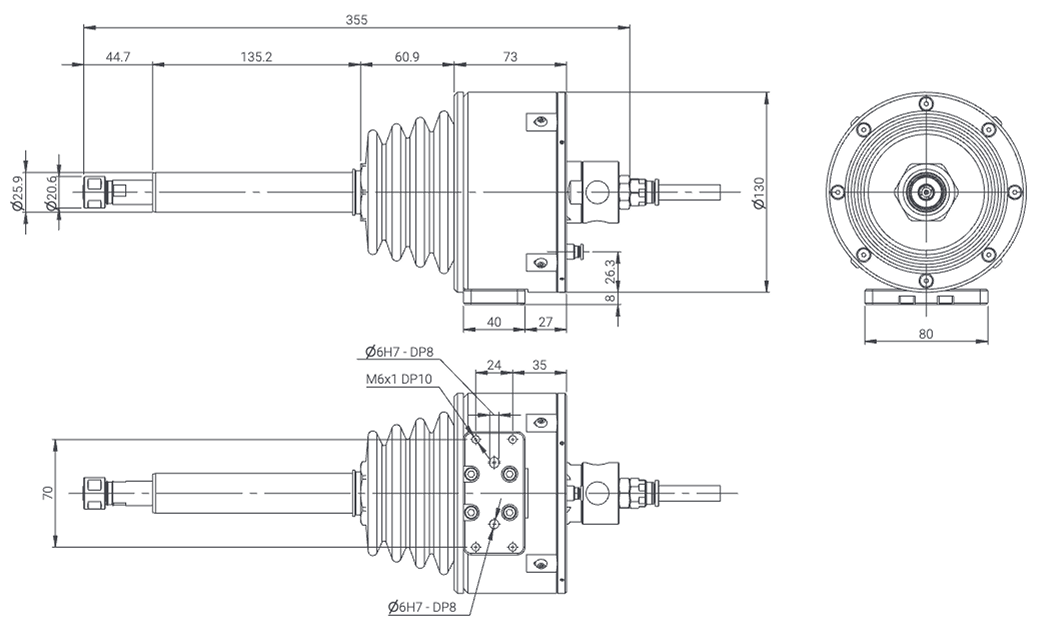

RC300L is a pneumatic radial compliance force tool with stable and adjustable force, supporting 360-degree radial compliance. Its extended spindle design minimizes interference and allows access to narrow areas and inner contours, making it ideal for automated deburring and finishing of complex part geometries or hard-to-reach surfaces.
Good for Large Burrs on Complex Curved Edges
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 7.2-18N |
| Power | 0.5kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 3.5 kg (7.72 lbs) |
| Dimensions (L x W x H) | 355 x 130 x 138 mm (11.6 x 5.1 x 5.4 in) |
| Speed | 16000 RPM |
| Air Consumption | 510LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness burrs. | |

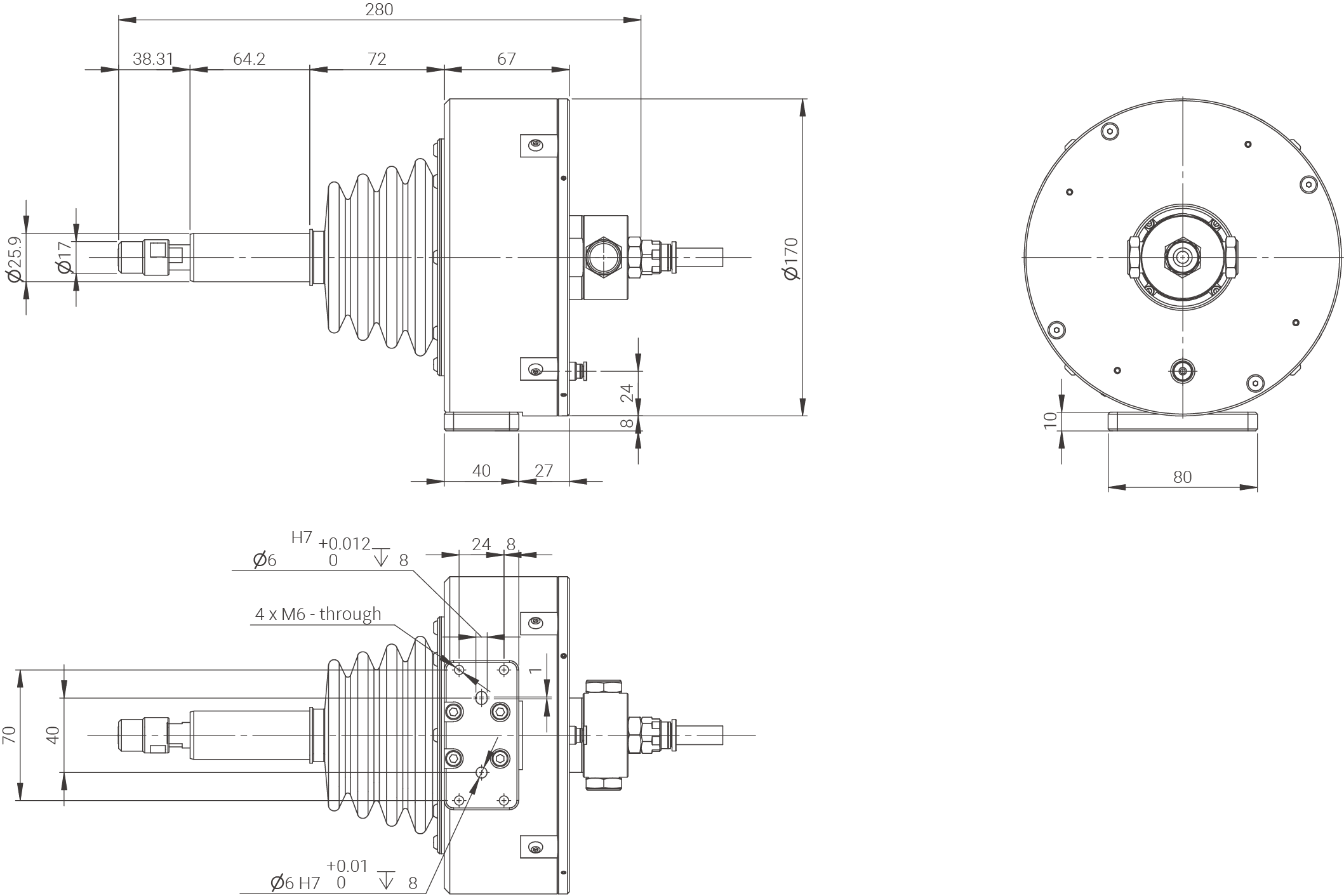

RC300H is a pneumatic radial compliance force tool with stable and adjustable force, supporting full 360-degree radial compliance. Its reinforced structure delivers up to 105N of compliance force, significantly higher than the RC300M, making it ideal for deburring and edge trimming of hard castings such as cast iron, stainless steel, and heat-resistant alloys. The high-force capability prevents chatter, enhances processing stability, and ensures smooth integration into automated systems, making it a reliable solution for heavy-duty finishing applications.
Good for Large Burrs on Complex Curved Edges
Aluminum, copper, steel.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6 / End Mill |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Radial 3.5° |
| Compliant Force | 42-105 N |
| Power | 0.5kW |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 5.1kg |
| Dimensions (L x W x H) | 296 x 170 x 178 mm (11.65 x 6.69 x 7.01 in) |
| Speed | 16000RPM |
| Air Consumption | 510 LPM (L/min) |
| Options: High-force compliance type available for large or high-hardness burrs. | |
