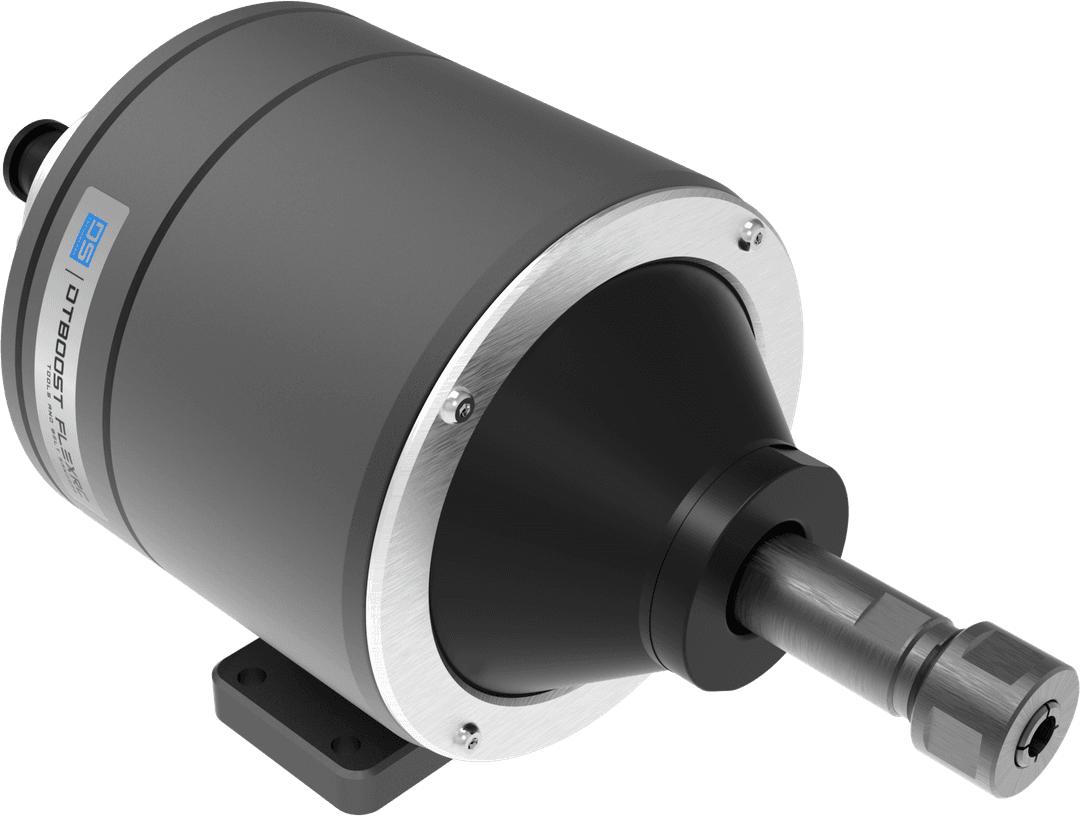

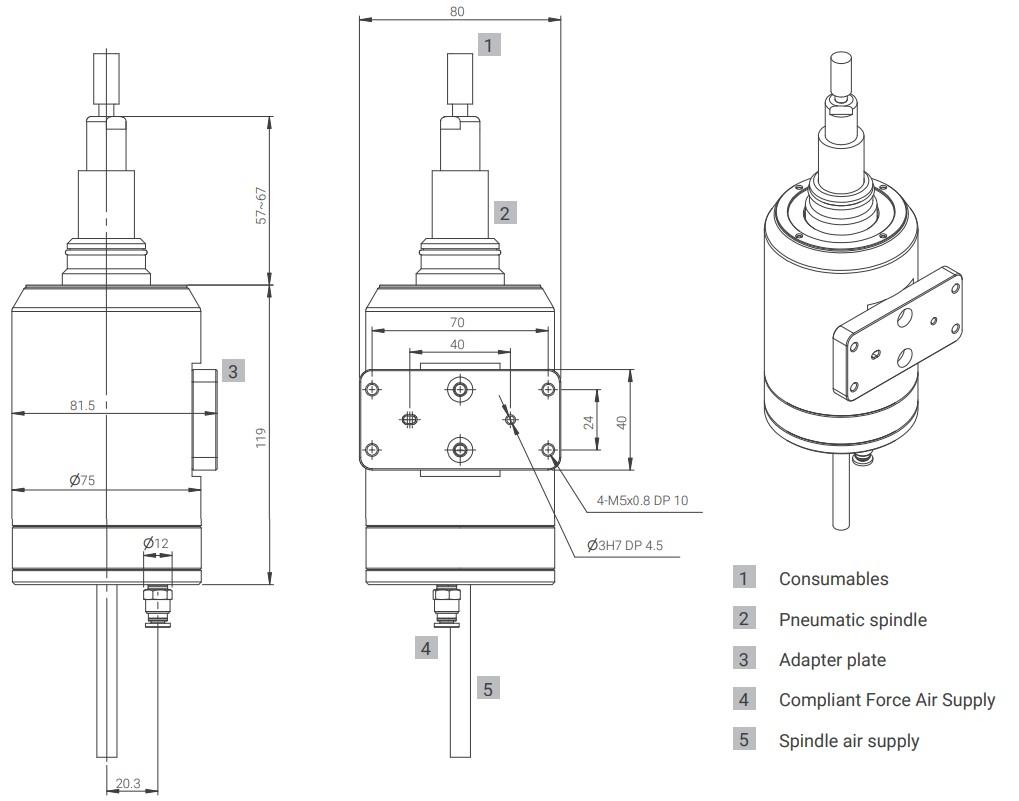

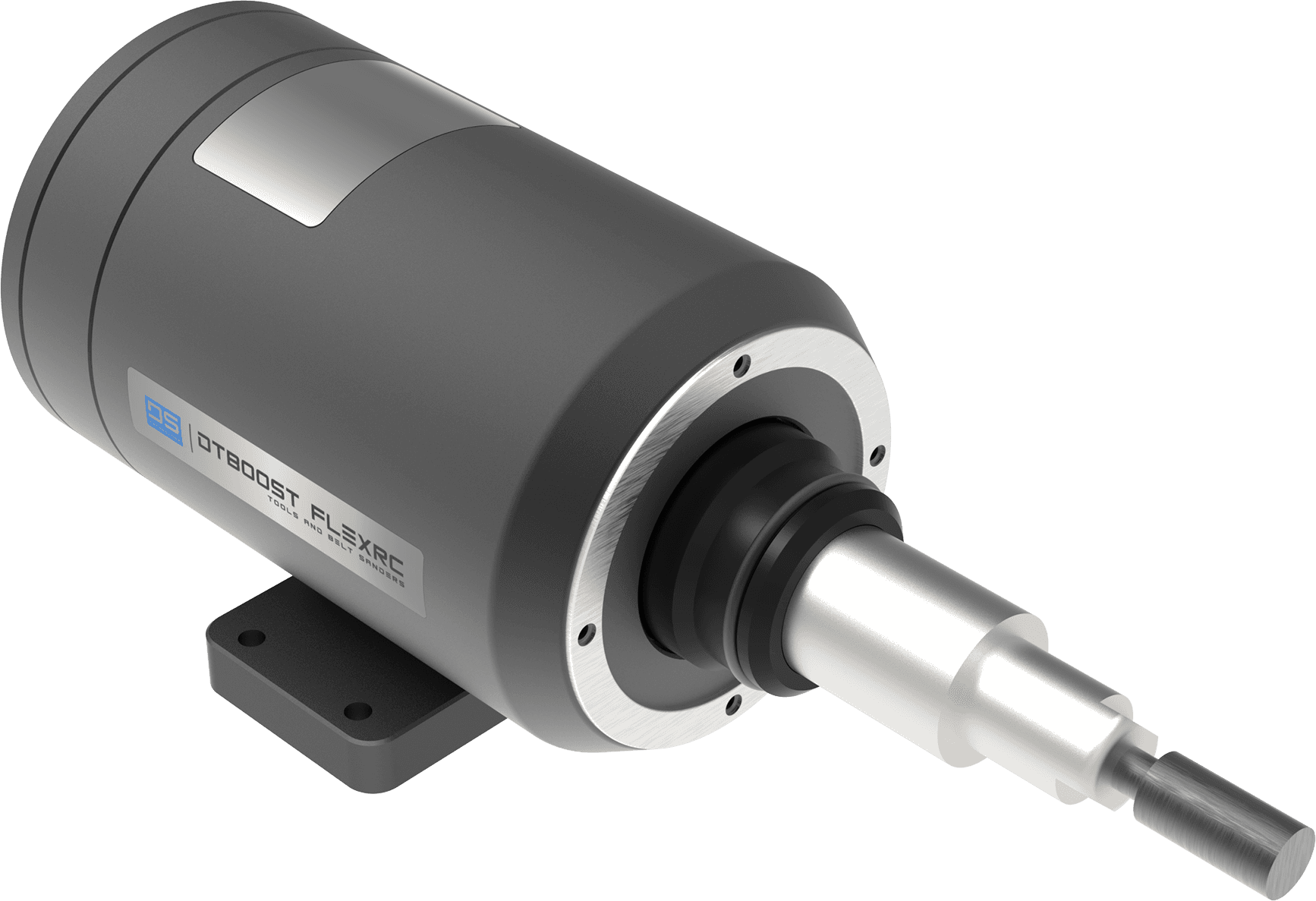

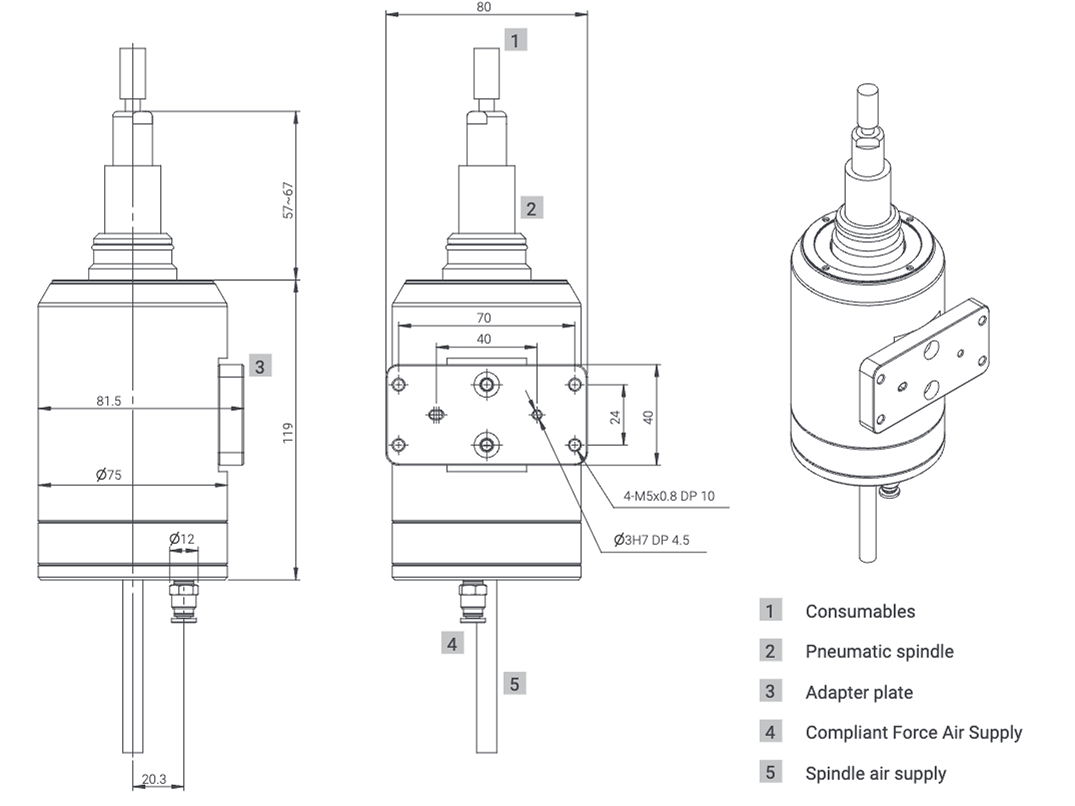

LC300 is a pneumatic linear compliance force tool with a built-in 35,000 RPM high-speed spindle. It provides stable and adjustable linear force with full compliance capability. The stroke automatically adapts to surface changes, maintaining balanced contact pressure. Ideal for light-force applications such as deburring and fine trimming of small parts. Its compact structure allows smooth integration into space-constrained automation setups.
Good for Treating Minor Burrs on Flat Surfaces
Aluminum, copper, steel, plastic, composite materials, and wood.
| Functions | Pneumatic Grinder |
| Collet Size | Φ3、Φ6 / Abrasive Tool with Handle |
| Compliant Pressure | 0.2-0.5 MPa (2-5 bar) |
| Compliant Stroke | Unidirectional 10 mm |
| Compliant Force | 5-20N |
| Power | N/A |
| Spindle Pressure | 0.6 MPa (6 bar) |
| Weight | 1.7 kg (3.75 lbs) |
| Dimensions (L x W x H) | 205 x 73 x 85 mm (8.07 x 2.87 x 3.35 in) |
| Speed | 35000 RPM |
| Air Consumption | 350LPM (L/min) |

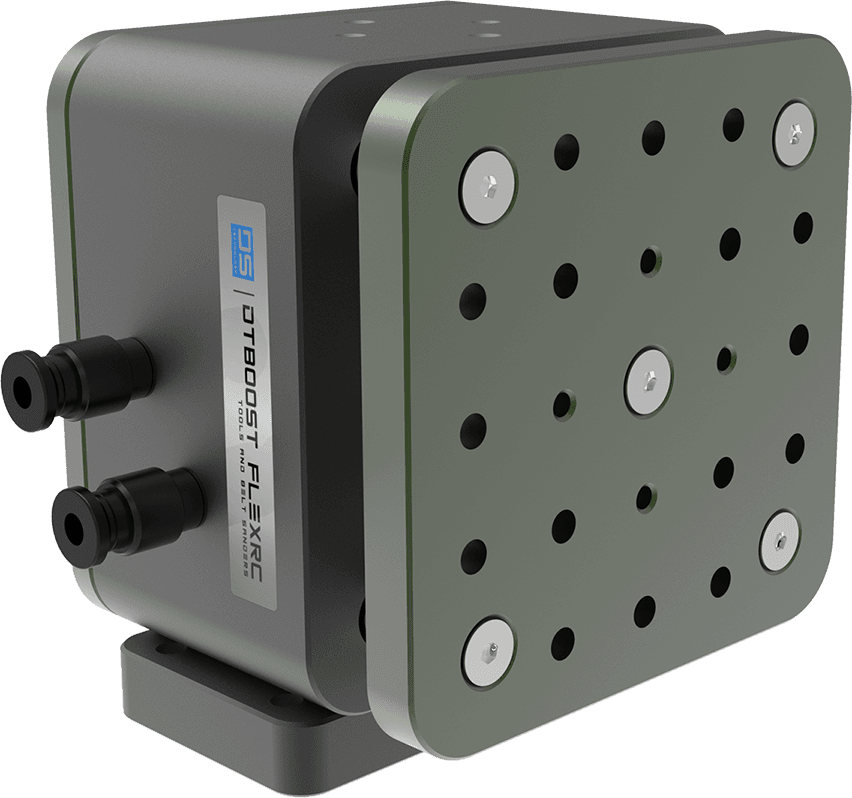

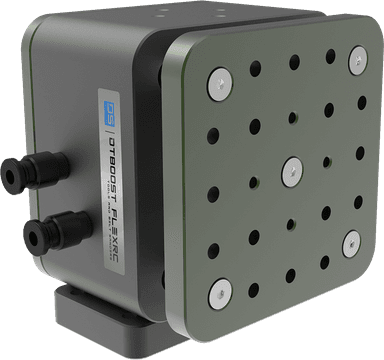

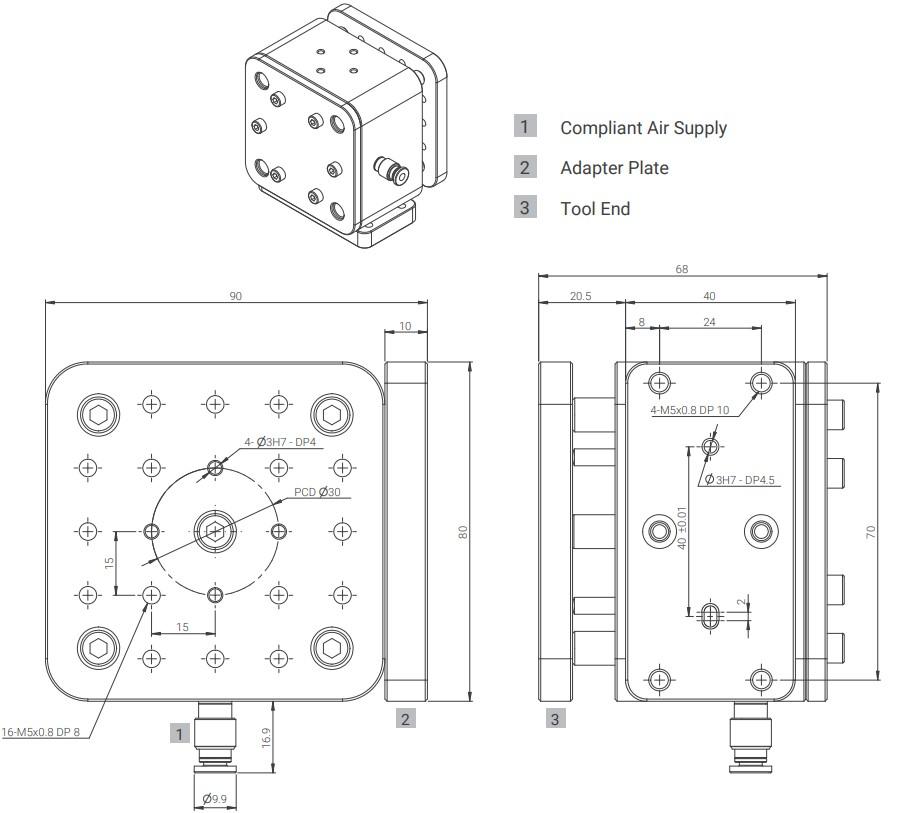

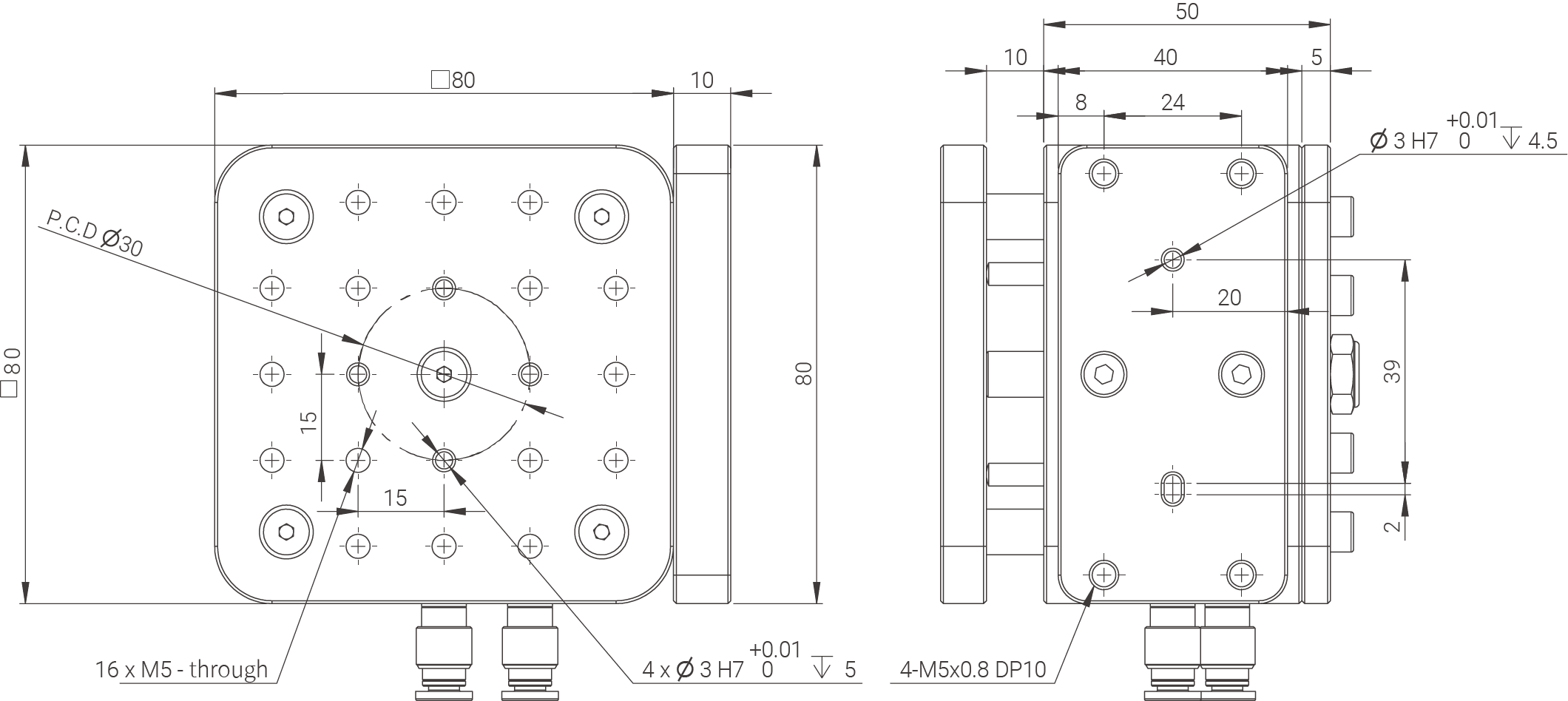

LCZ100 is a compact pneumatic linear compliance force module that provides stable and adjustable force with a 10mm stroke. The stroke compensates automatically for surface variations, ensuring consistent contact pressure. Designed for automation tasks in tight spaces or interference-sensitive zones, it supports various deburring and grinding tools. The module is compatible with the ASC4-RTH automatic sandpaper change system for enhanced operational continuity and can be upgraded to an active compliance control system with the ACFC-x300 controller for higher force precision and adaptability.
| Functions | Compact Z-axis Compliant Module (Without End-Effector) |
| Collet Size | N/A |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 10 mm |
| Compliant Force | 10-30N |
| Power | N/A |
| Spindle Pressure | N/A |
| Weight | 1.2 kg (2.65 lbs) |
| Dimensions (L x W x H) | 95 x 61 x 90 mm (3.74 x 2.40 x 3.54 in) |
| Speed | N/A |
| Air Consumption | N/A |

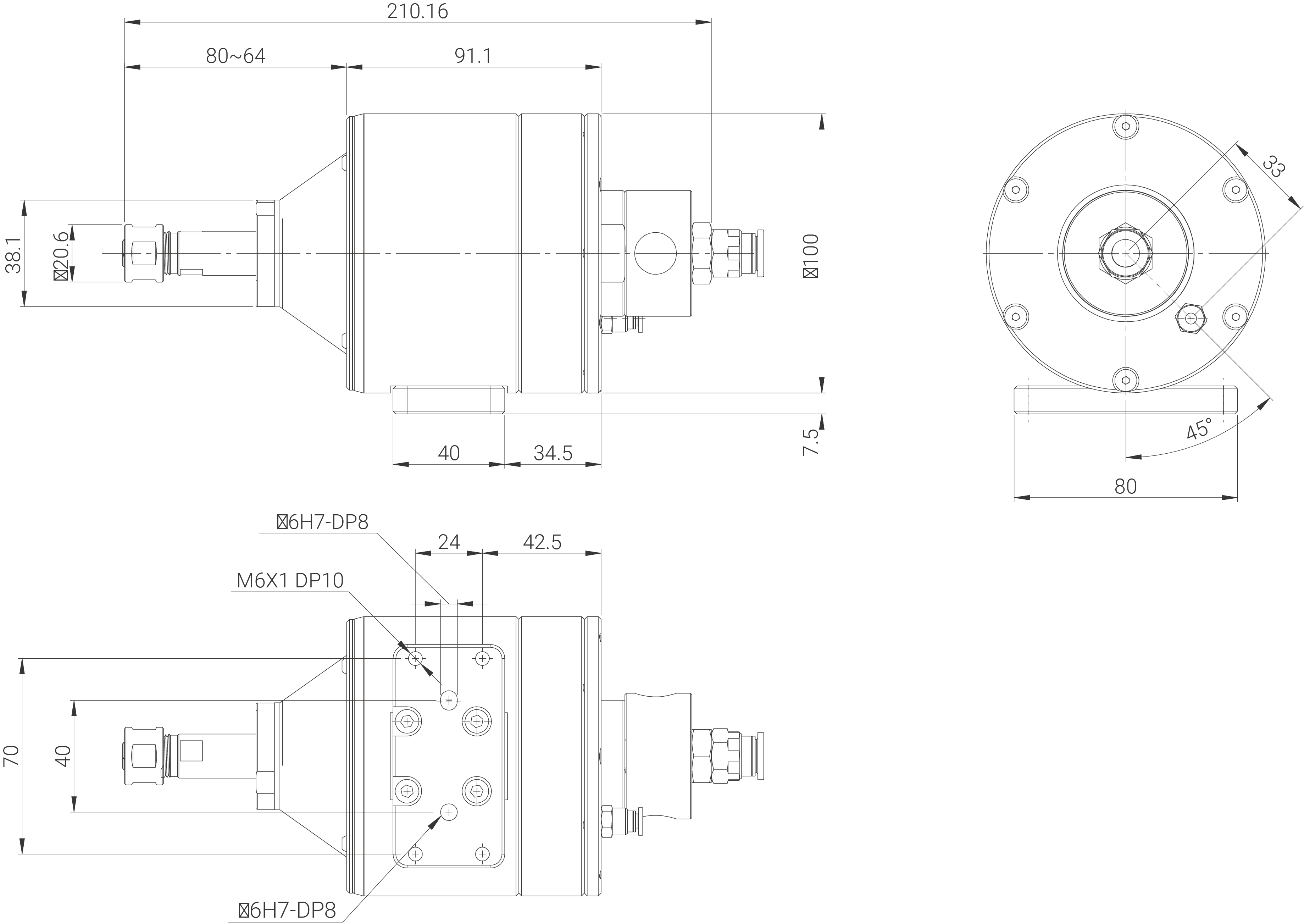

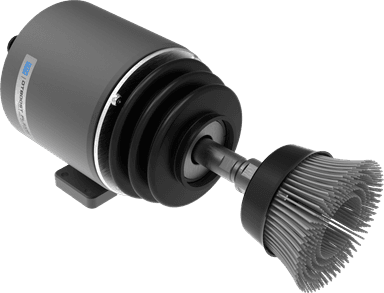

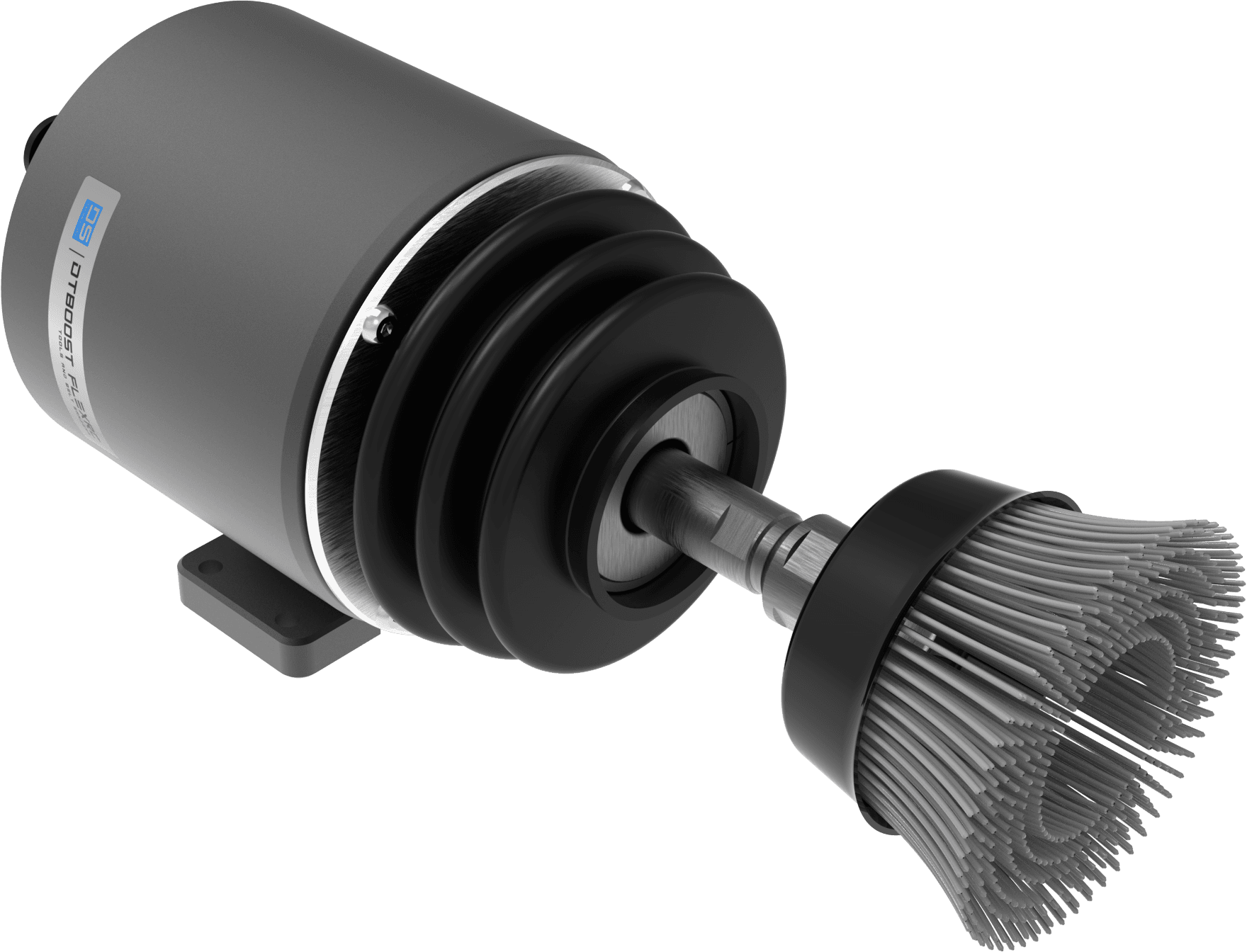

LC300B is a pneumatic linear compliance force tool with stable and adjustable force, equipped with a low-speed air spindle for abrasive and wire brush applications. The stroke automatically adapts to surface changes, maintaining consistent contact pressure. Ideal for deburring, cleaning, and surface texturing on curves, edges, and complex profiles. Its linear compliance design helps avoid interference and integrates smoothly into space-constrained robotic systems.
Compatible with grinding wheels for large-area surface finishing.
Aluminum, copper, steel, and composite materials.
| Functions | Pneumatic Grinder |
| Collet Size | Φ6、Φ8 / Abrasive Tool with Handle |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 16 mm |
| Compliant Force | 21-53N |
| Power | 0.37kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 2.6kg (5.73 lbs) |
| Dimensions (L x W x H) | 210 x 100 x 107.5 mm (8.27 x 3.94 x 4.23 in) |
| Speed | 3500 RPM |
| Air Consumption | 113LPM (L/min) |

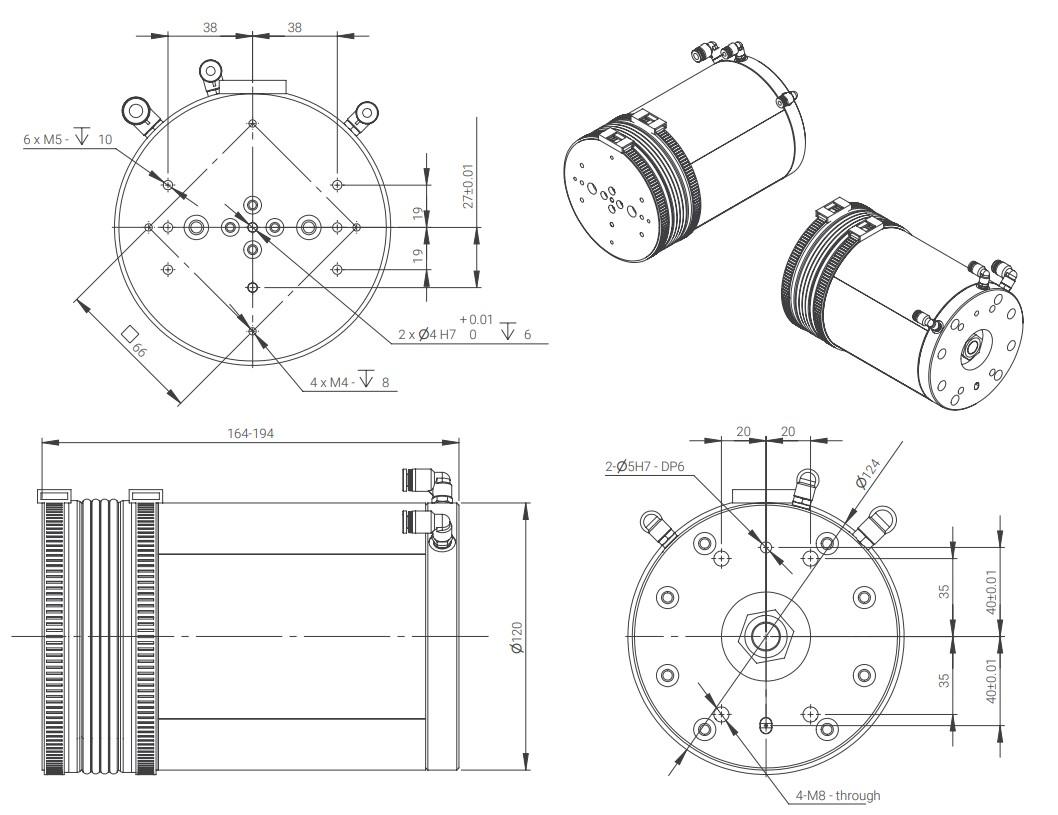

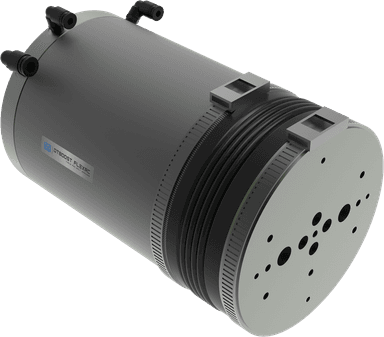

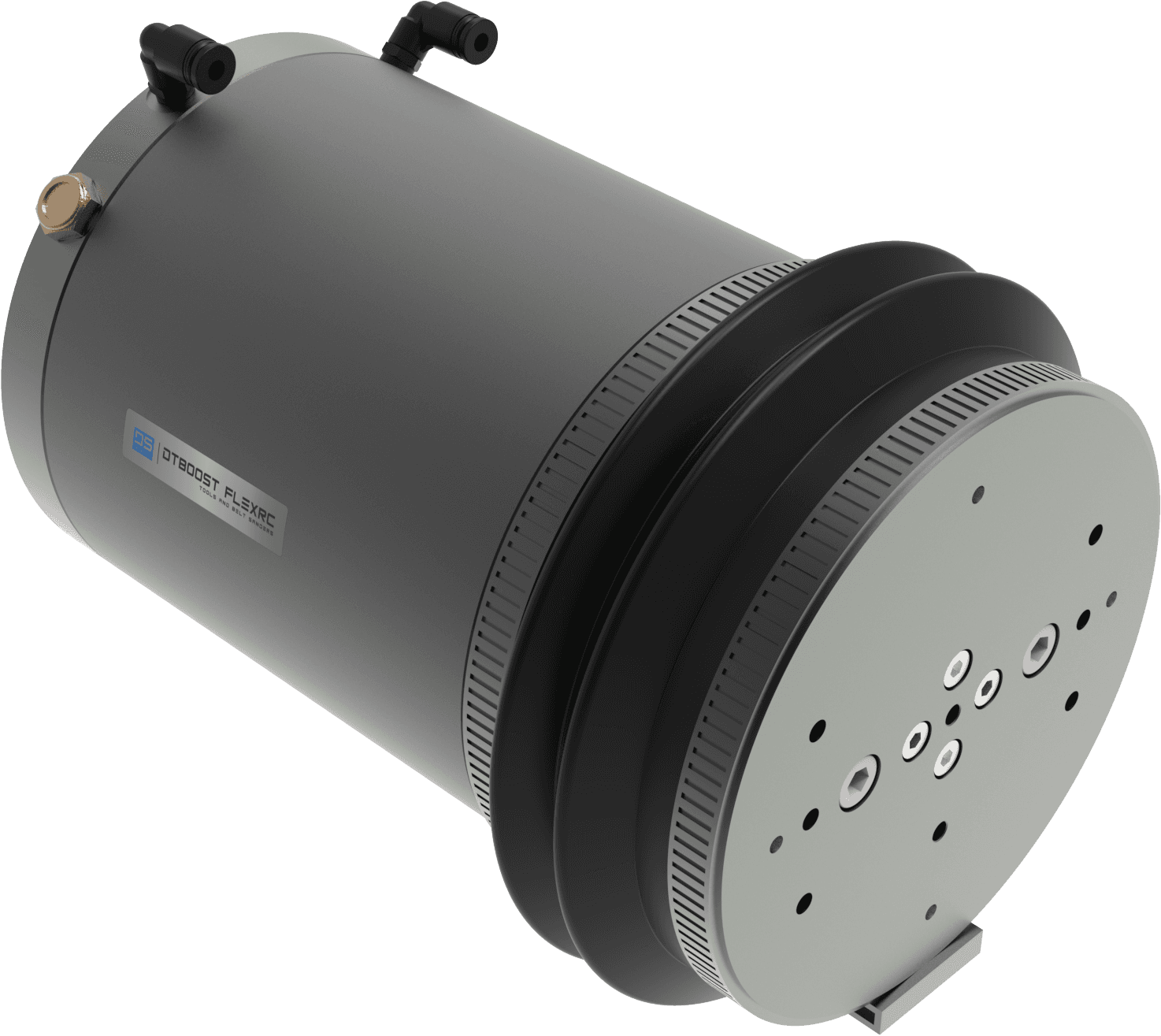

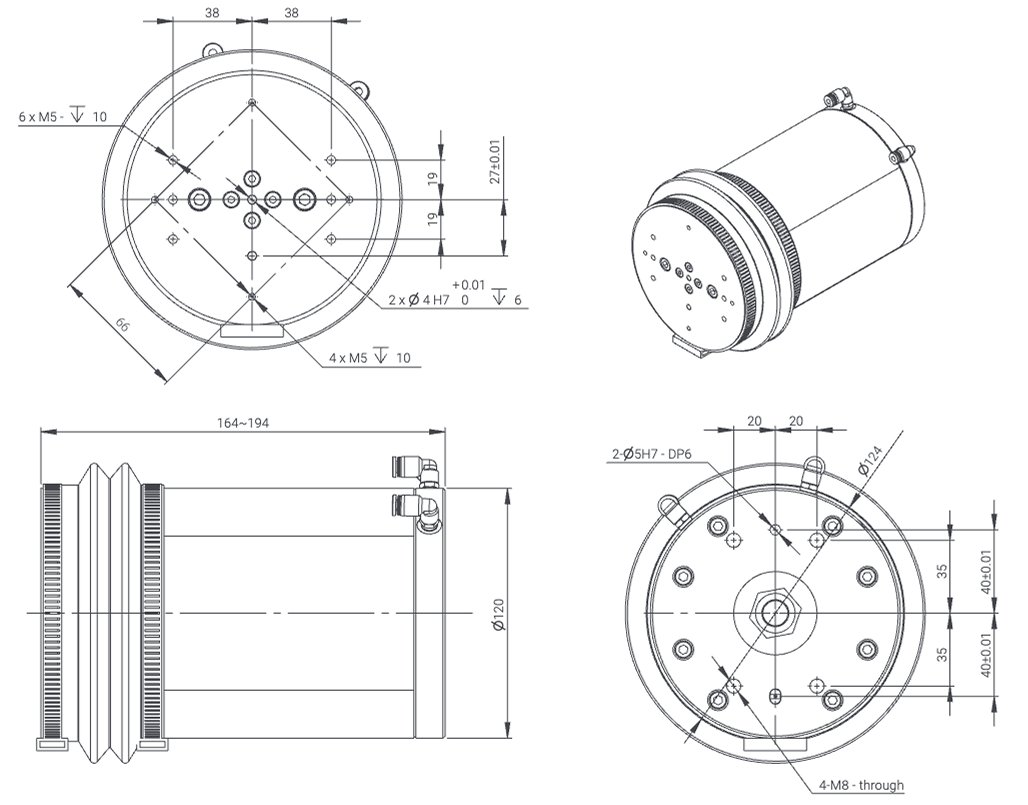

LCZ300 is the most versatile standard pneumatic linear compliance force module in the LCZ series. It provides stable and adjustable force with a smooth compliance response and an extended 28mm stroke, effectively compensating for part tolerance and avoiding interference. It supports various tools for deburring, grinding, and polishing, and is compatible with the ASC4-RWH and ASC4-RTH automatic sandpaper change systems to enable efficient multi-process automation. The module can also be upgraded to active compliance control with the ACFC-x300 controller for enhanced force stability and precision.
Adds Compliance Function to Customer-Owned Tools
Depends on the tool used.
| Functions | Ultra-Smooth Z-Axis Compliant Module, Compatible with Various Grinding Tools |
| Collet Size | N/A |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 28 mm |
| Compliant Force | 40-100N |
| Power | N/A |
| Spindle Pressure | N/A |
| Weight | 2.6 kg (5.73 lbs) |
| Dimensions (L x W x H) | 120 x 120 x 194 mm (4.72 x 4.72 x 7.64 in) |
| Speed | N/A |
| Air Consumption | N/A |
