Compatible with Tools LCZ100 / LCZ300 / LRCZ300
Supports RTH-2TP / RTH-2P Surface Finishing Systems | Compatible with LCZ100 / LCZ300 / LRCZ300 Tools | User-Friendly External Sandpaper Replacement Design | Enables Fully Automated Sandpaper Change

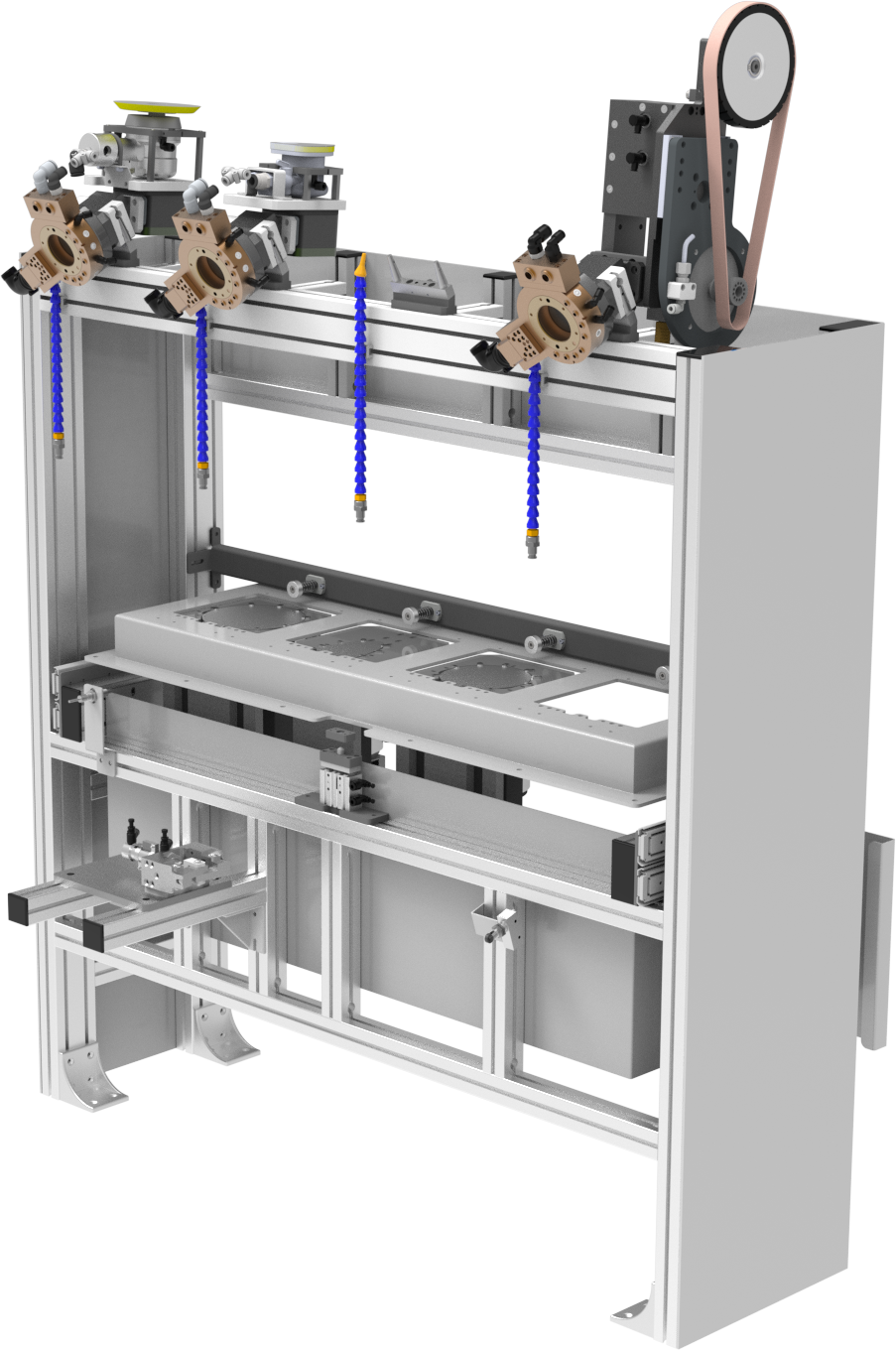

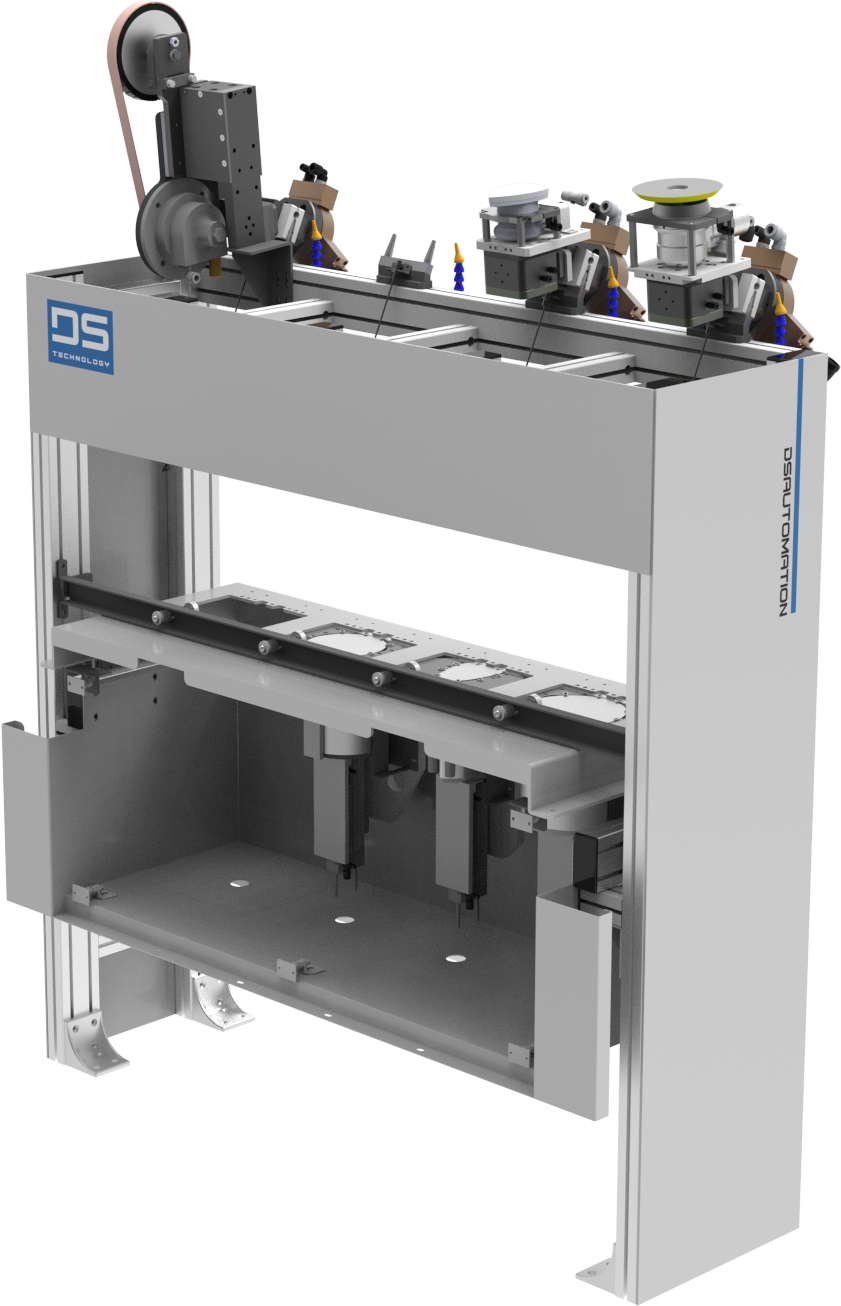

ASC4-RTH is an automatic sandpaper changing module developed by DS Technology specifically for the RTH-2TP and RTH-2P handheld-type tool surface finishing systems. The system offers flexible configuration based on the robotic tool changer and sandpaper slot setup. It comes standard with support for four tool-and-abrasive combinations of different sizes and grits and can be expanded to accommodate additional specifications for various workpieces and process requirements.
ASC4-RTH features a patented sandpaper removal design that enables stable detachment of used abrasives. It also includes a user-friendly external replacement mechanism that enhances the reliability and maintainability of sandpaper changes. The system automatically switches between abrasive papers and tools according to the workpiece and process, achieving fully automated tool and consumable changes, significantly increasing flexibility and production efficiency.
The system is compatible with compliant grinding tools such as LCZ100, LCZ300, and LRCZ300. It uses standard Hook & Loop fastening and supports common abrasive sizes including 2", 3", 5", and 6" round pads, as well as triangular and rectangular shapes—ideal for multi-variety, automated grinding applications.
Automotive, motorcycle, bicycle, aerospace, medical, defense, hardware, semiconductor, 3C components, and other automated precision manufacturing fields
Depending on abrasive and tool setup; commonly processed materials include aluminum alloys, stainless steel, cast iron, plastics, and composites.
| Model | ASC4-RTH Robotic Sandpaper Changer for Handheld-Type Tools |
| System Type | Automated disc changeover module for handheld compliant force tools |
| Applicable Platform | RTH-2TP、RTH-2P handheld tool surface finishing system |
| Compatible Tools | LCZ100, LCZ300, LRCZ300 (compliant force grinding tools) |
| Tool Drive Compatibility | Compatible with pneumatic and electric tools |
| Supported Abrasive Quantity | Flexible based on tray configuration; default 4 disc types, expandable |
| Abrasive Attachment Method | Hook & Loop (Velcro) |
| Supported Abrasive Sizes | 2”, 3”, 5”, 6” round, triangular, rectangular, and other standard sizes |
| Abrasive Change Mechanism | The robot automatically removes used sandpaper and replaces it with new abrasive sheets through a gripper-changing system, completing the full replacement cycle without any manual intervention. |
| Control Interface | PLC or Robot I/O |
| Operating Air Pressure | 5–6 bar |

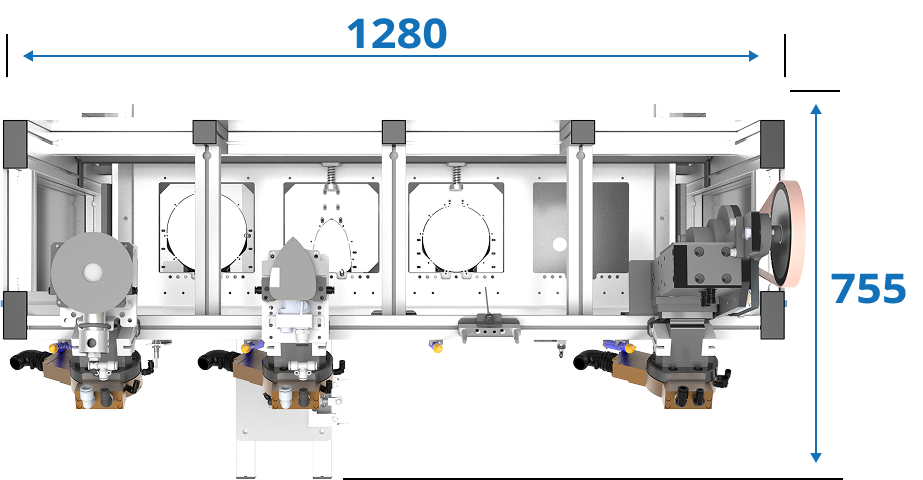

| Dimensions (W × D × H) | 1280 x 755 x 1377 mm |
| Abrasive Storage Capacity | Dependent on sandpaper model, default around 150 sheets |
| Installation Method | Installed within RTH-2TP and RTH-2P systems |
