Compatible with Tool BS800
Supports RTH-2TP / RTH-2P Surface Finishing Systems | Compatible with BS800 Tool | User-Friendly External Belt Replacement Design | Enables Fully Automated Sanding Belt Change

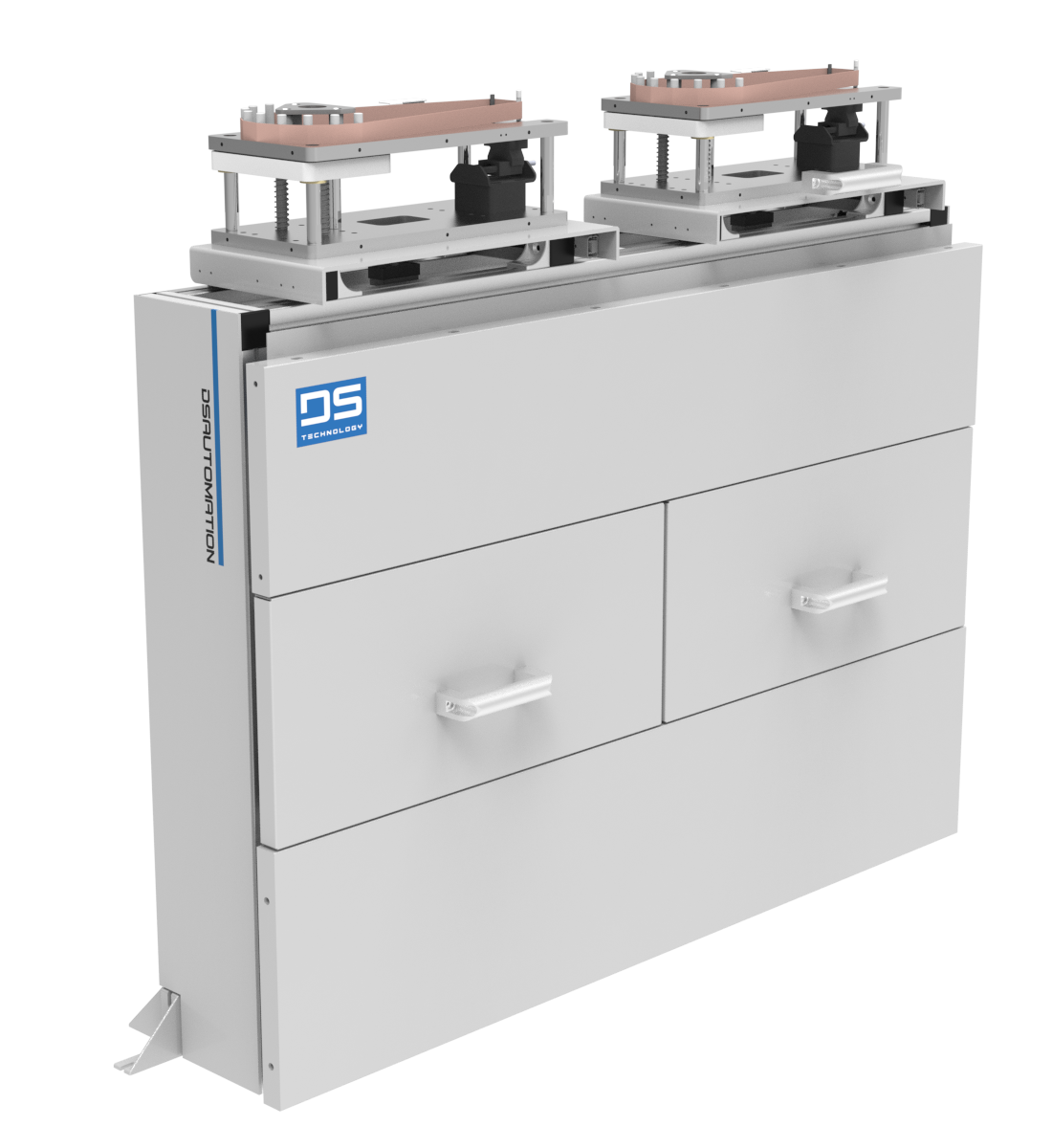

ABSC4-RTH is an automatic sanding belt changing module developed by DS Technology specifically for the RTH-2TP and RTH-2P handheld-type surface finishing systems. It is designed to work with the BS800 series compliant belt tools and supports up to four sanding belt slots. The system features a stable belt guiding and positioning drive mechanism that ensures accurate alignment and fast switching of sanding belts.
The module adopts a drawer-style external access design, allowing operators to slide out the belt module from outside the machine for quick replacement without entering the equipment. This significantly improves maintenance convenience and operational efficiency.
Its modular architecture also supports future expansion and customization. It is well suited for grinding, deburring, and surface finishing of medium and large metal parts, meeting the demands of fully automated and highly flexible production processes.
Automotive, motorcycle, bicycle, aerospace, medical, defense, hardware, semiconductor, 3C components, and other automated precision manufacturing fields
Depending on abrasive belt type and tool used; commonly processed materials include aluminum alloys, stainless steel, cast iron, plastics, composites, etc.
| Model | ABSC4-RTH Robotic Sanding Belt Changer for Handheld-Type Tools |
| System Type | Automated multi-belt changeover module (drawer-type design) |
| Applicable Platform | RTH-2TP, RTH-2P handheld tool surface finishing systems |
| Compatible Tools | BS800 (compliant force belt sander) |
| Supported Belt Quantity | Default 4 belts; expandable as required |
| Compatible Abrasive Belt Types | Supports various belt widths/lengths/grits according to BS800 design specifications |
| Grit Switching Function | Supports abrasive belts of various grits, enabling multi-stage grinding (rough, medium, fine). |
| Belt Change Mechanism | Robot-integrated mechanical drive system automatically aligns, positions, and clamps abrasive belts |
| Structure Change Mechanism | Front drawer-style external replacement design allows quick slide-out for replacement and maintenance |
| Control Interface | PLC or Robot I/O |
| Operating Air Pressure | 5–6 bar |
| Dimensions (W × D × H) | 1262 x 230 x 1137 mm |
| Installation Method | Embedded installation within RTH system platform |
