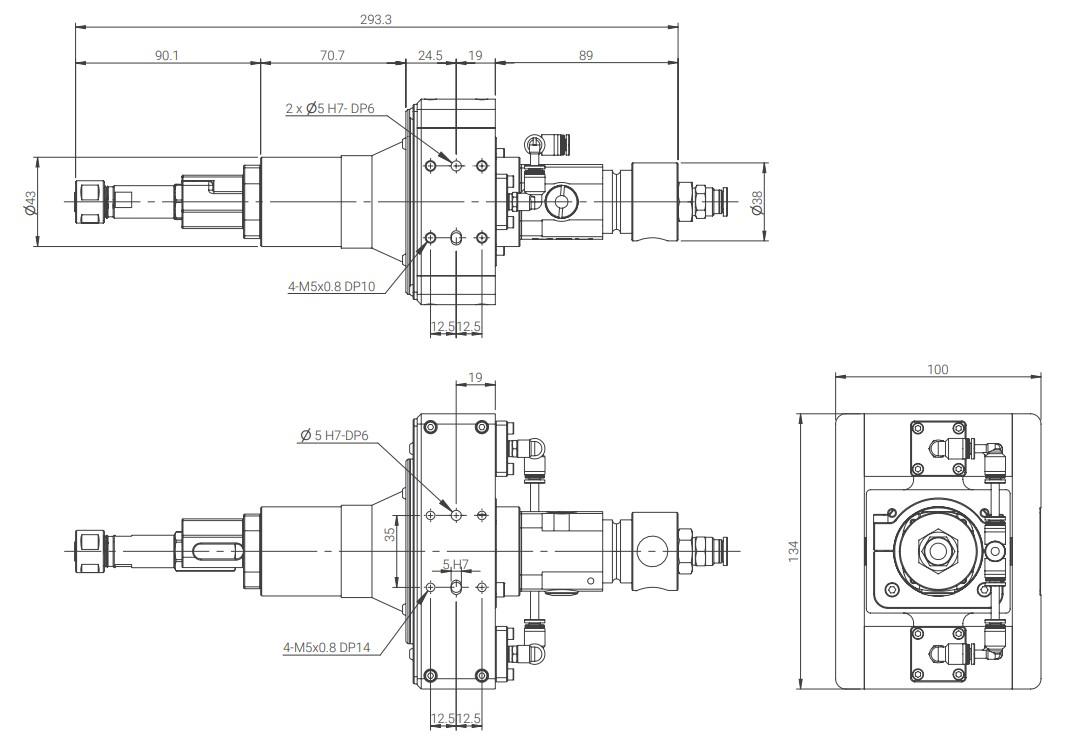

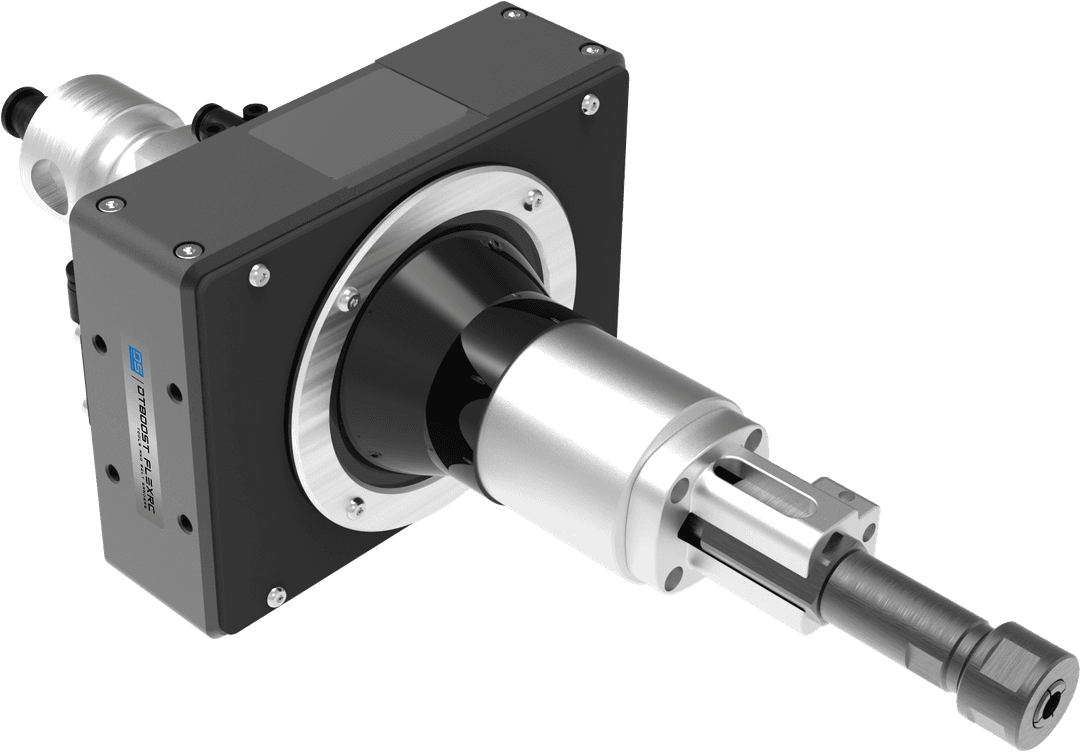

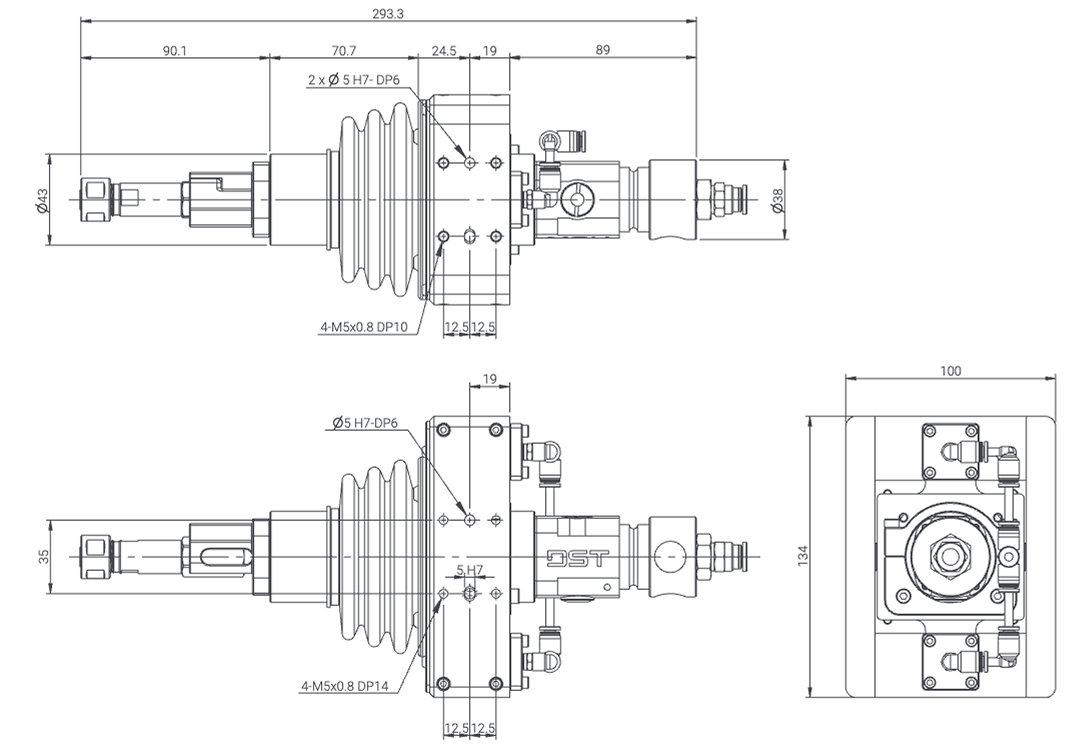

AC100F is a pneumatic compliance force tool designed for file-type tools. It provides stable and adjustable force with full angular compliance capability. The stroke adapts automatically to surface changes, maintaining balanced contact pressure for reliable deburring and precision finishing in tight spaces. Its compact structure enables seamless integration into space-limited automation systems.
Good for large burrs on complex curved edges
Aluminum, copper, steel, plastic, composite materials, wood.
| Functions | Pneumatic File |
| Collet Size | Φ6/ Flat File |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | + -5.5° |
| Compliant Force | 6-15N |
| Power | N/A |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 2kg (4.41 lbs) |
| Dimensions (L x W x H) | 300 x 100 x 134 mm (11.81 x 3.94 x 5.28 in) |
| Reciprocating Frequency / Stroke | 5000BPM/10mm |
| Air Consumption | 170LPM(L/min) |

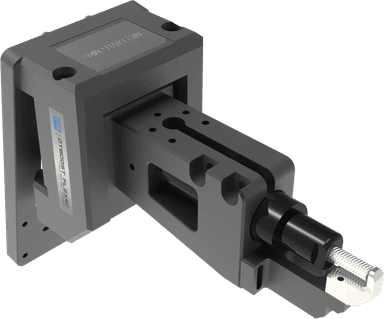

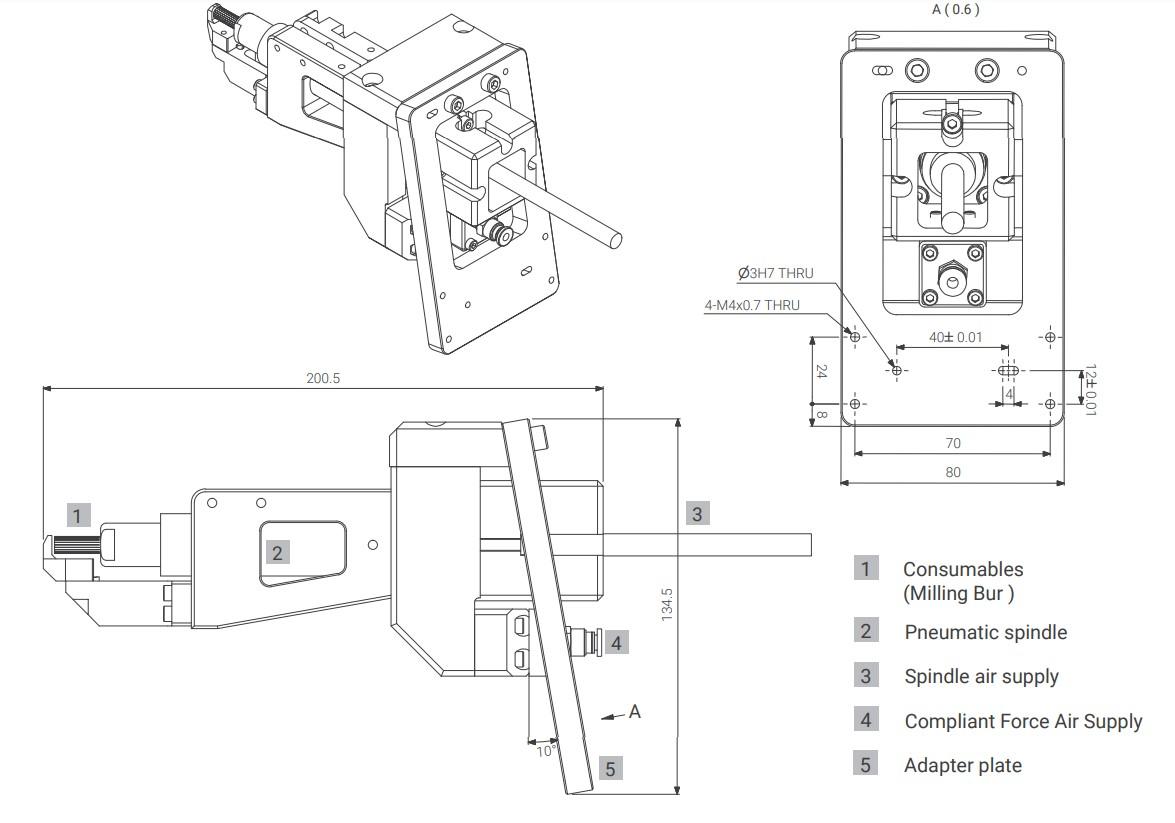

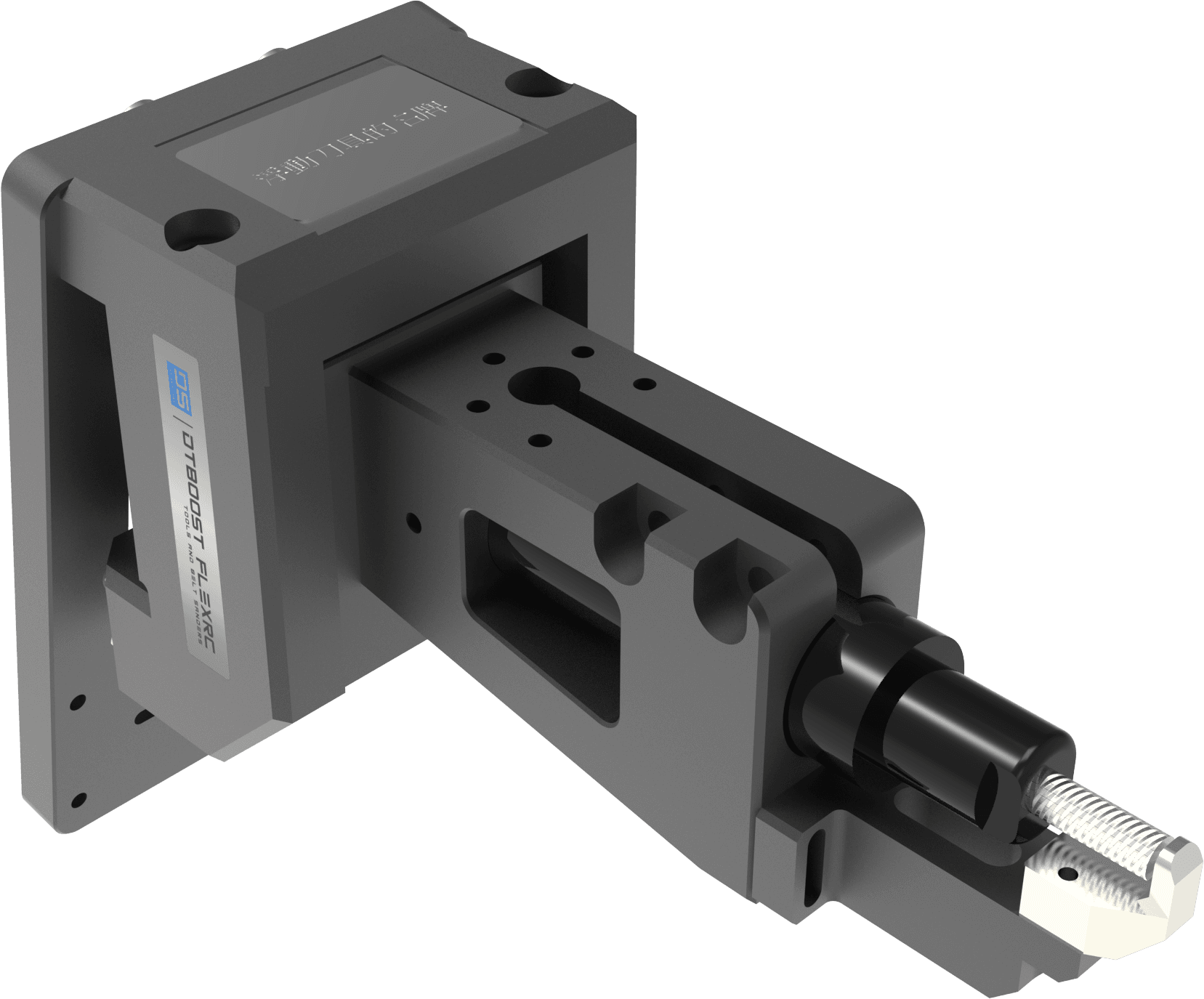

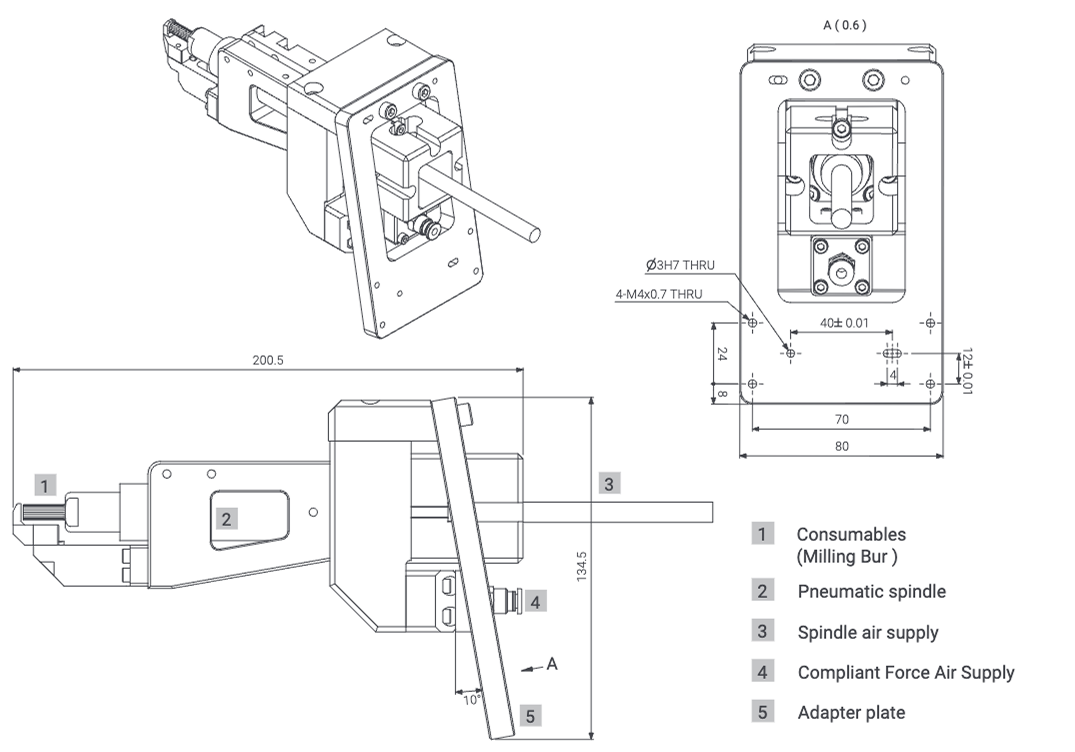

AC300 is a pneumatic compliance force tool with stable, adjustable force and full angular compliance capability. Its contact-surface structure enables direct control of material removal, while the compliance stroke adapts to surface changes to maintain consistent contact pressure. This results in uniform deburring and high processing accuracy, making it ideal for integration into automated systems.
Good for Large Burrs on Curved Surfaces
Aluminum, Copper, Steel, Plastic, Composite Materials, Wood
| Functions | Pneumatic Grinder |
| Collet Size | Φ3、Φ6 / Milling Bur |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 5.5° |
| Compliant Force | 4-8N |
| Power | N/A |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 1.6 kg (3.53 lbs) |
| Dimensions (L x W x H) | 202 x 80 x 134 mm (7.95 x 3.15 x 5.28 in) |
| Speed | 35000 RPM |
| Air Consumption | 350LPM (L/min) |
