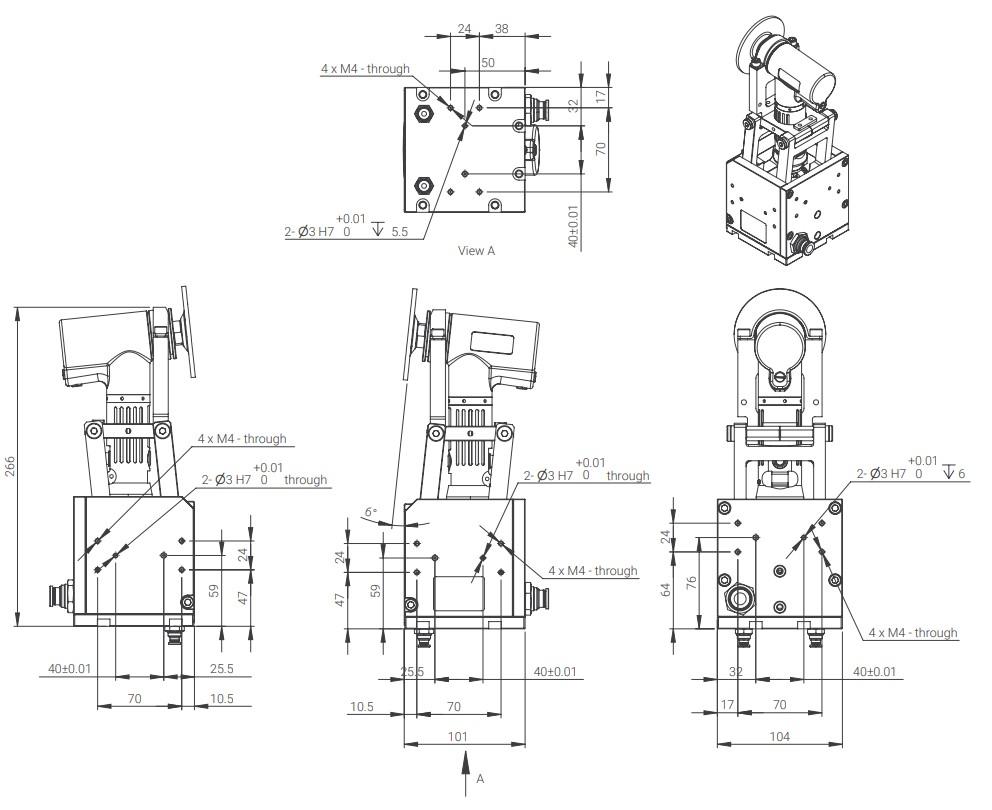

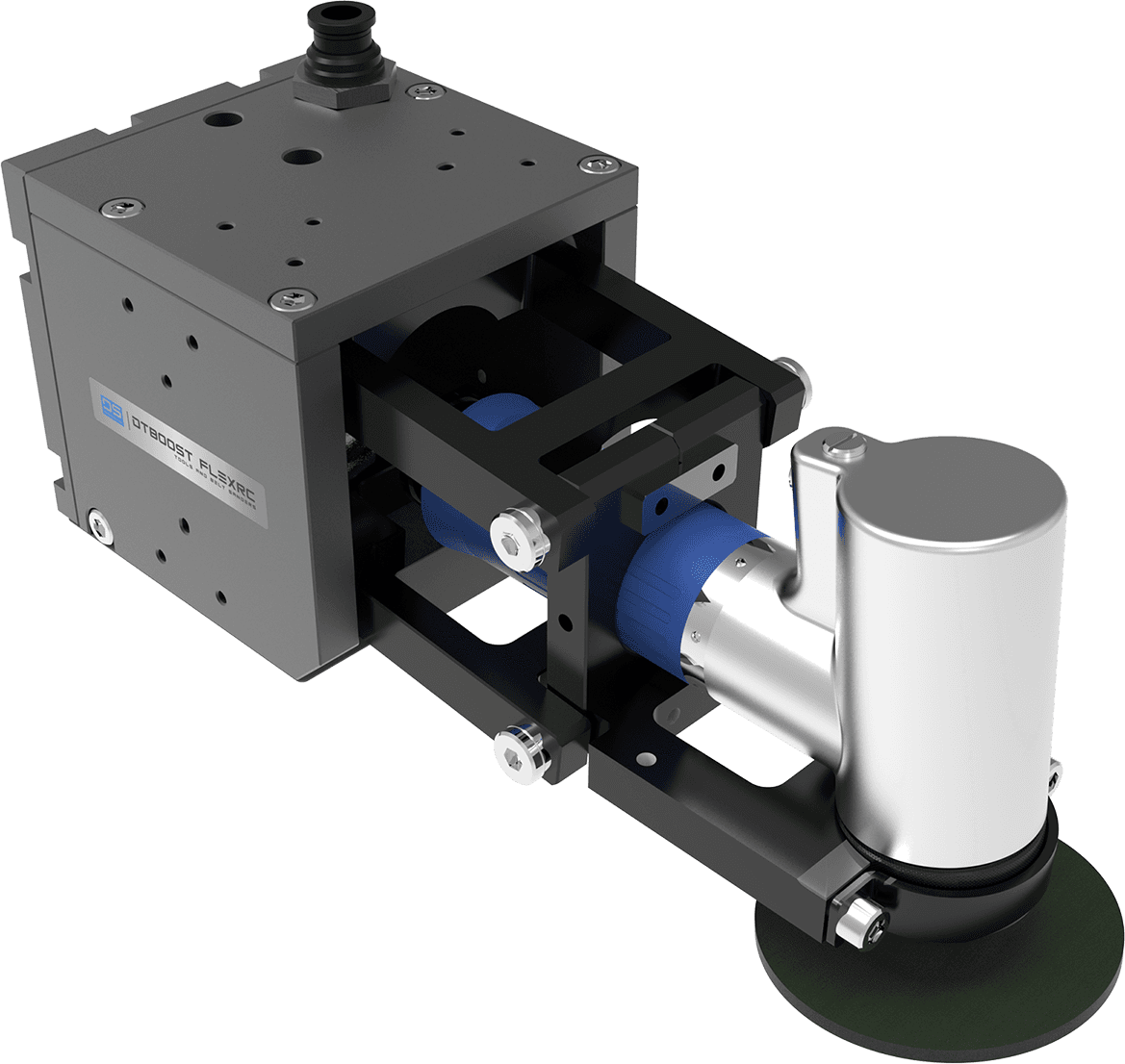

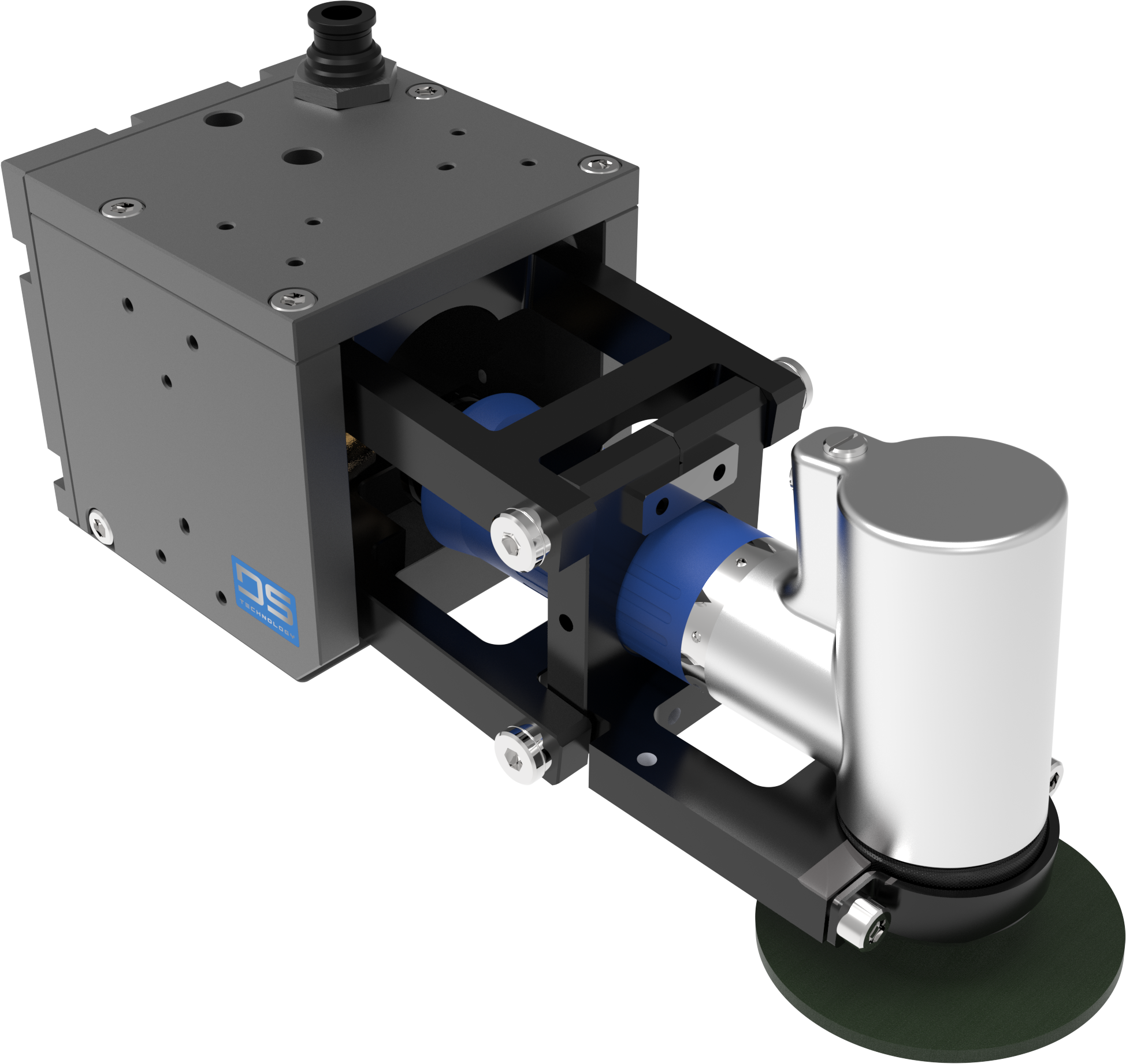

PC600 is a lightweight pneumatic compliance force tool with ultra-low compliance force, ideal for fine grinding and deflashing in surface finishing applications. Compatible with various surface grinding wheels, it flexibly adapts to diverse processing needs. A built-in contact sensor detects workpiece contact and signals the robot to adjust feed rate. Its parallelogram linkage design ensures consistent tool angles and stable processing results.
Good for Large Burrs on Curved Edges
Aluminum, copper, steel, cast iron, stainless steel, plastic, composite materials, and wood.
| Functions | Pneumatic Grinder |
| Collet Size | 3"/ Grinding Wheel, Sanding Disc |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 8mm |
| Compliant Force | 20-50N |
| Power | 0.37kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 2.4kg (5.3 lbs) |

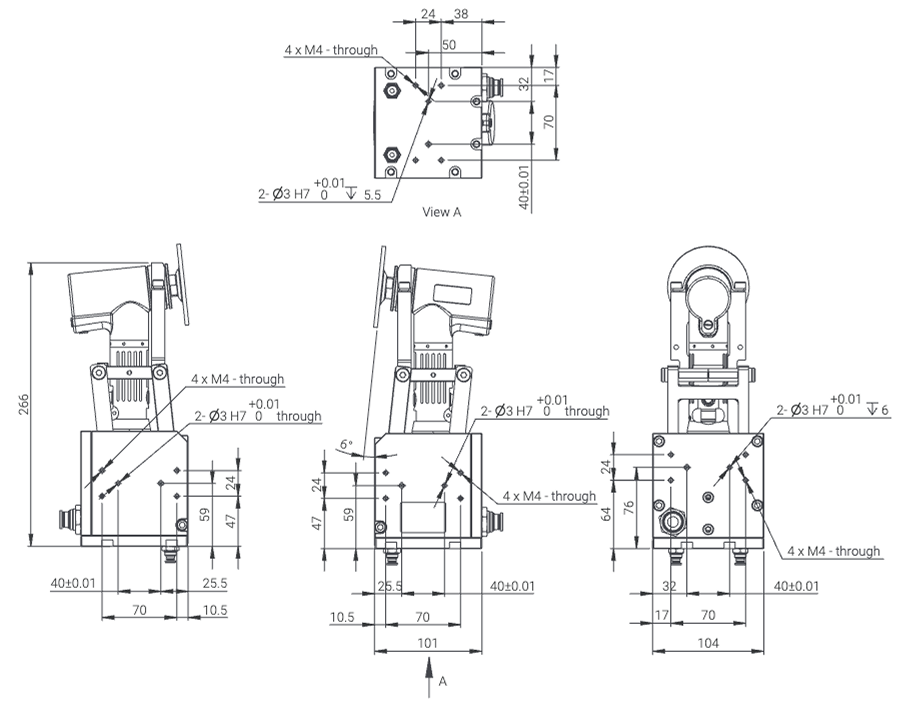

| Dimensions (L x W x H) | 266 x 104 x 101 mm (10.47 x 4.09 x 3.98 in) |
| Speed | 18000 RPM |
| Air Consumption | 150LPM(L/min) |

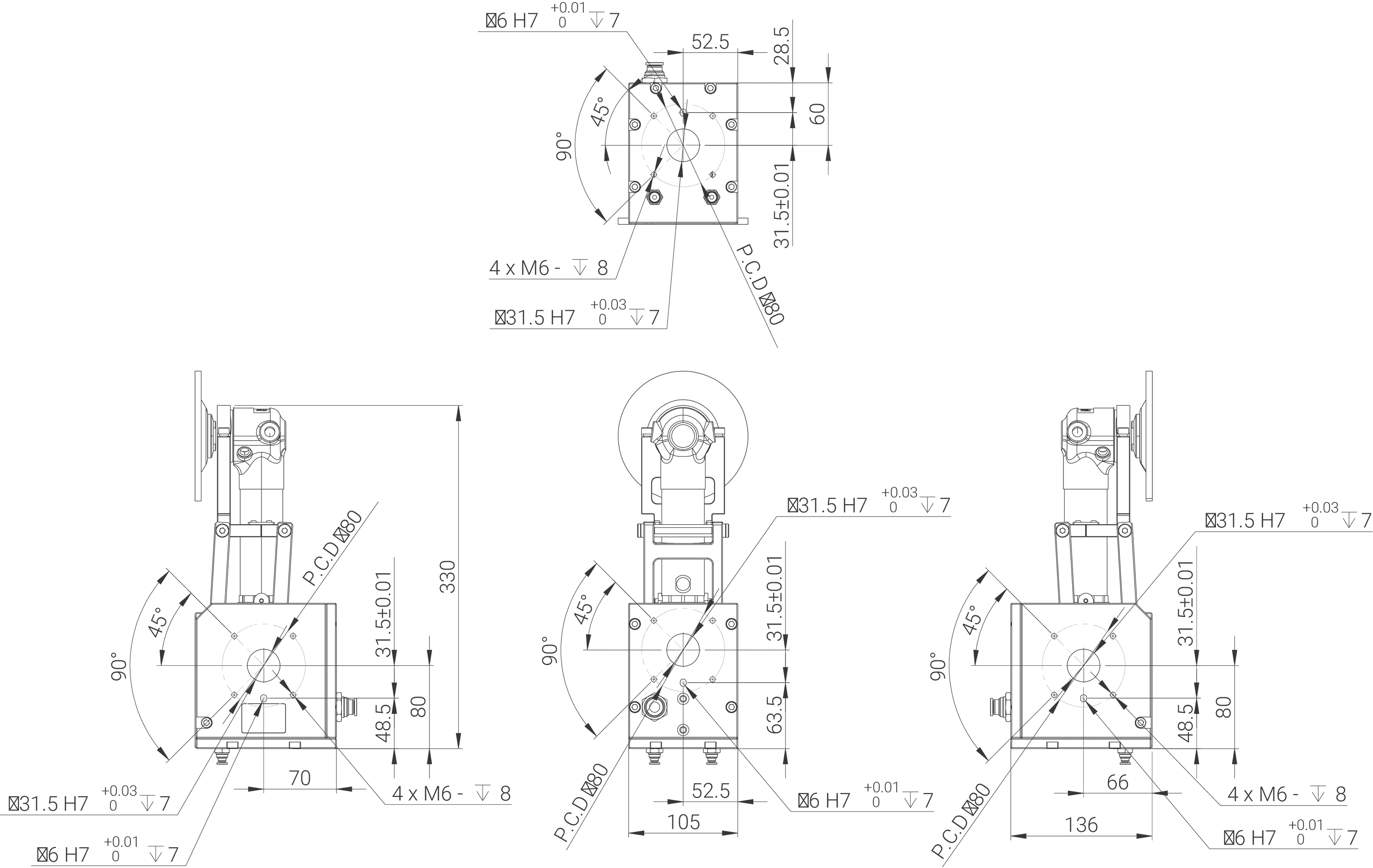

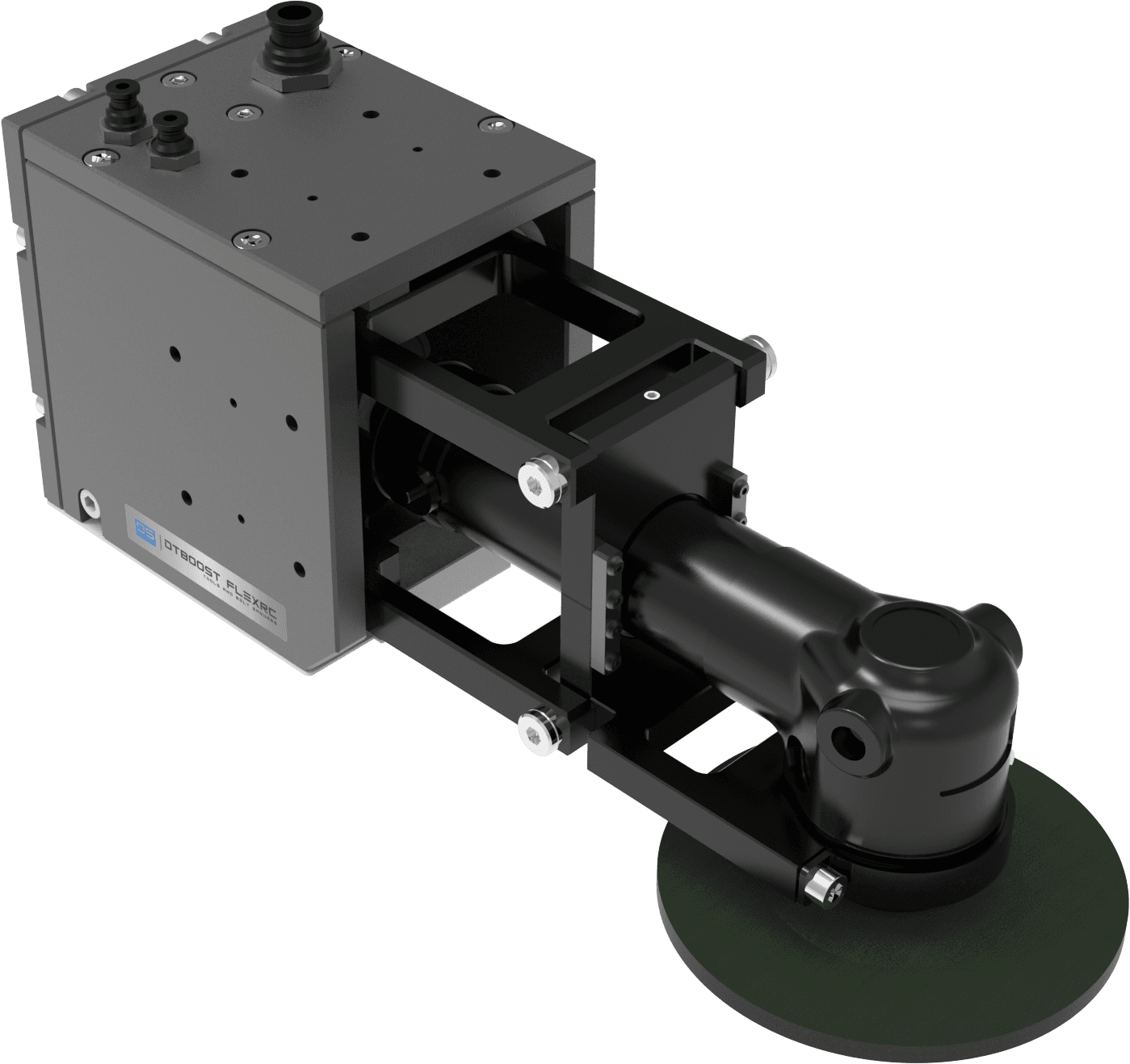

PC900 is a high-force pneumatic compliance tool designed for powerful grinding and heavy-duty material removal. It offers stable and adjustable compliance force and supports various surface grinding wheels. A built-in contact sensor detects workpiece contact and signals the robot to adjust feed rate. The parallelogram linkage design ensures consistent tool angles, enhancing the efficiency and quality of automated grinding processes.
Good for Large Burrs on Curved Edges
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, and wood.
| Functions | High-Power Pneumatic Grinder |
| Collet Size | 5"/ Grinding Wheel, Sanding Disc |
| Compliant Pressure | 0.2-0.5MPa (2-5bar) |
| Compliant Stroke | Unidirectional 8mm |
| Compliant Force | 50-100N |
| Power | 1.3kW |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 4kg (8.8 lbs) |

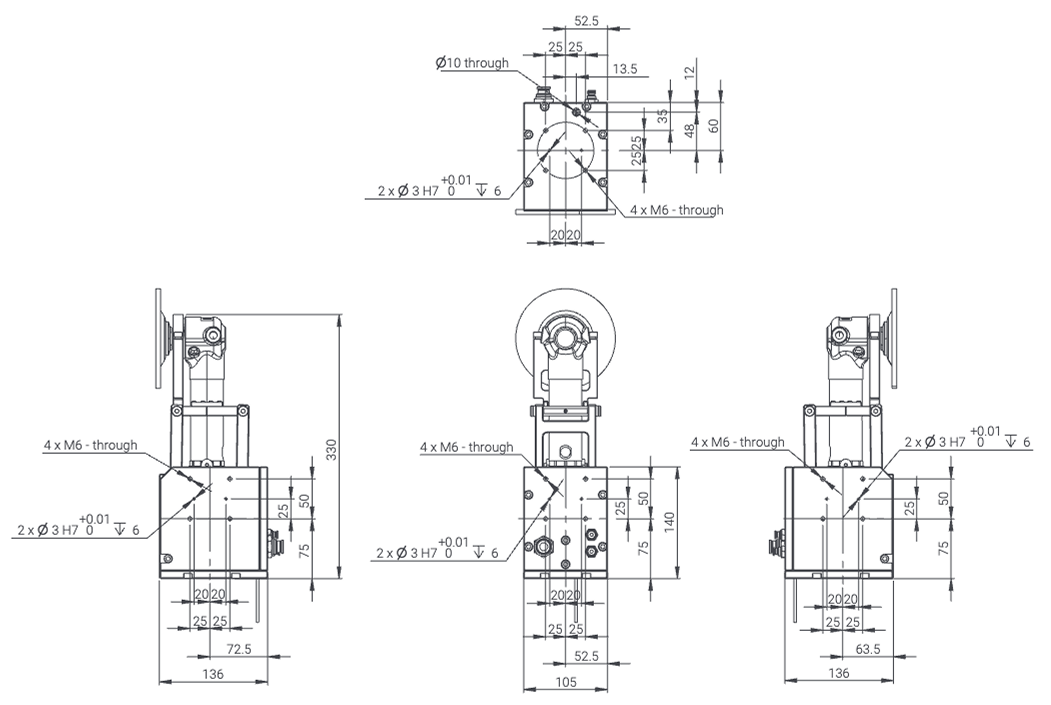

| Dimensions (L x W x H) | 330 x 136 x 105 mm (12.99 x 5.35 x 4.13 in) |
| Speed | 12000 RPM |
| Air Consumption | 1800LPM (L/min) |
