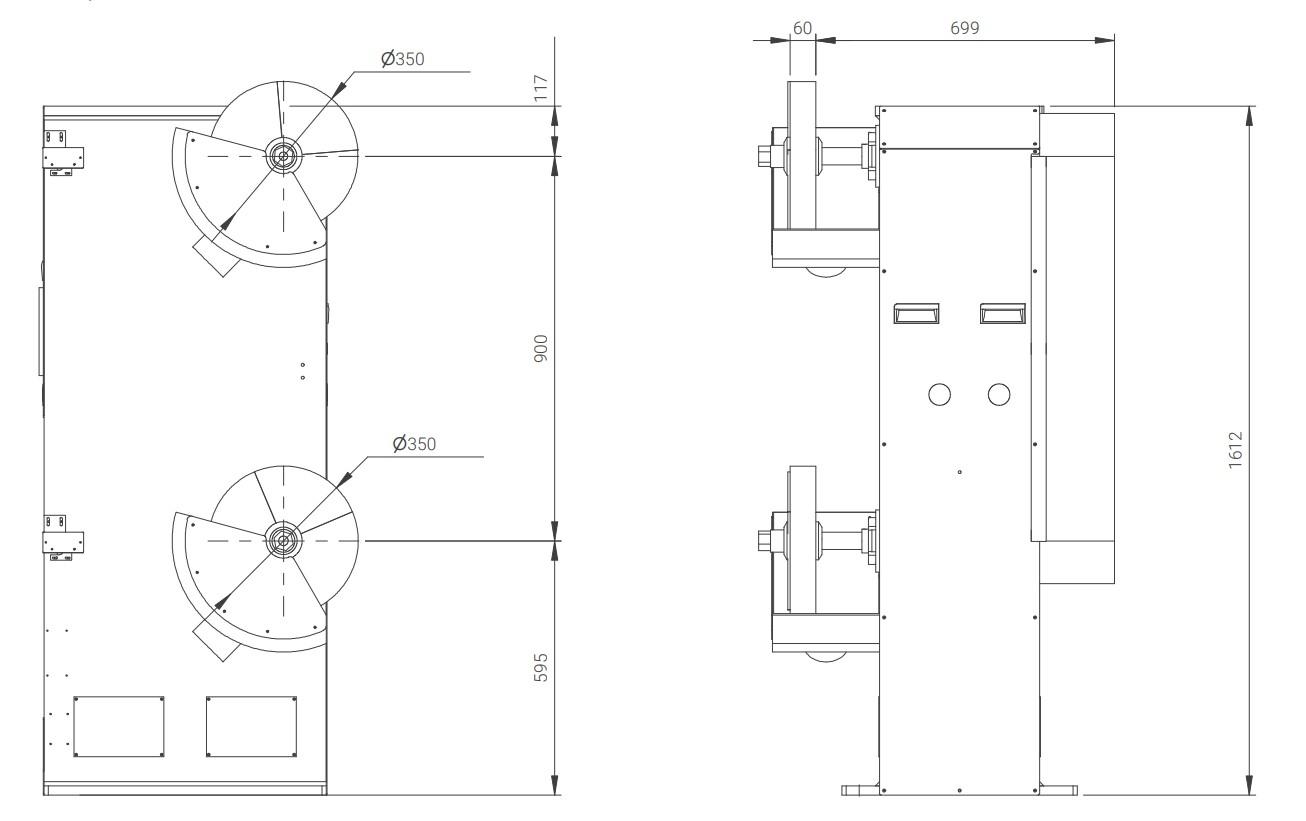

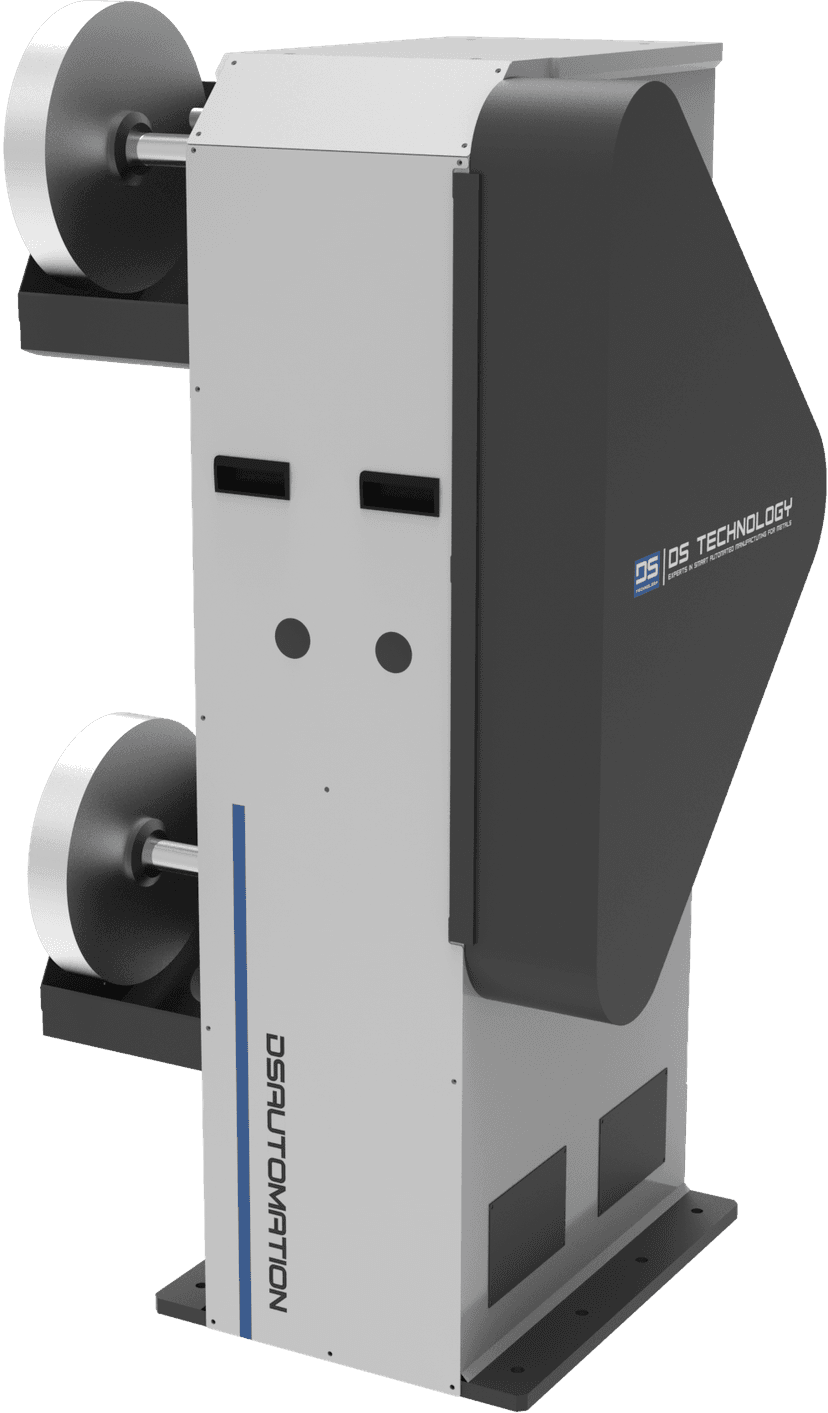

The EBS DuoGrind 3K features a dual grinding wheel setup, capable of accommodating two different types of grinding wheels simultaneously to meet diverse grinding and polishing needs. Equipped with high-precision wheel diameter monitoring, it provides real-time feedback on wheel size to prevent misjudgment and over-grinding, ensuring consistent processing quality. The grinding wheels can be combined with flapper and cloth wheels for versatile finishing, suitable for surface treatment of various workpieces and materials.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Flap Sander |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1338 x 925 x 2000 mm (52.68 x 36.42 x 78.74 in) |
| Weight | 616 kg (1359.5 lbs) |
| Wheel Diameter | 300-400mm |
| Options: Automatic high-precision wheel diameter detection | |

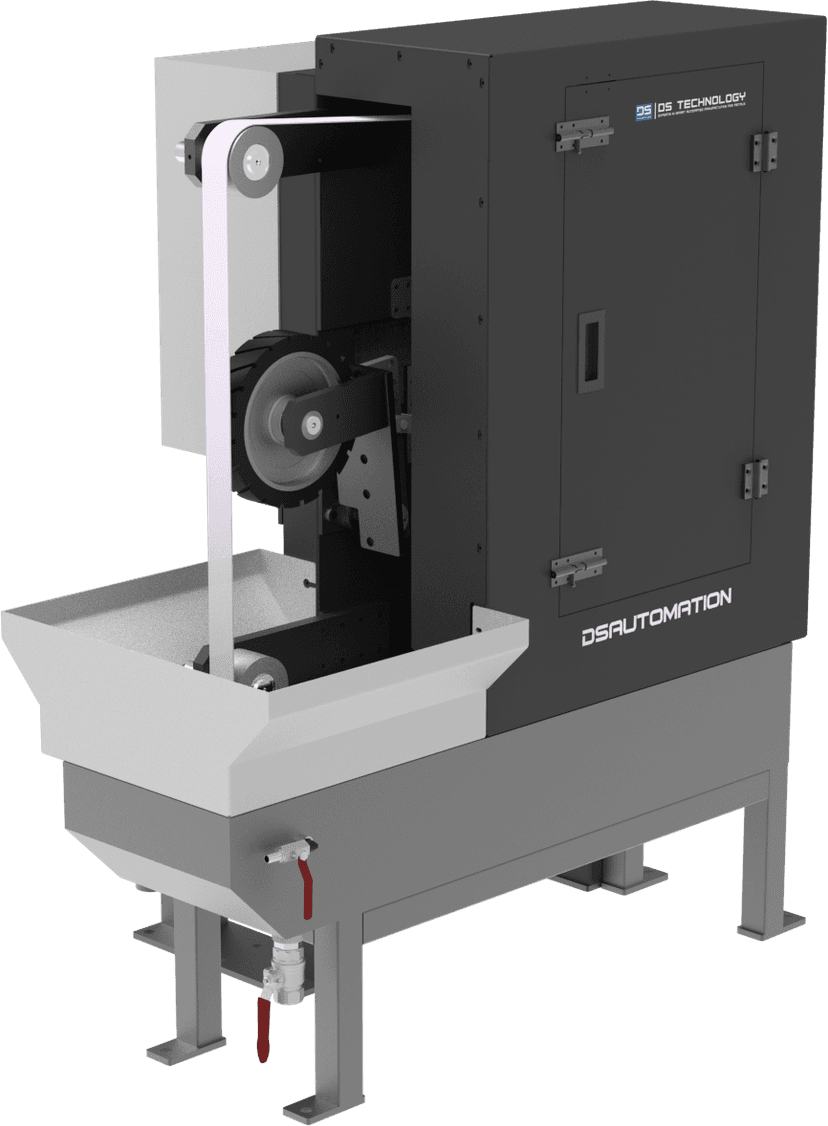

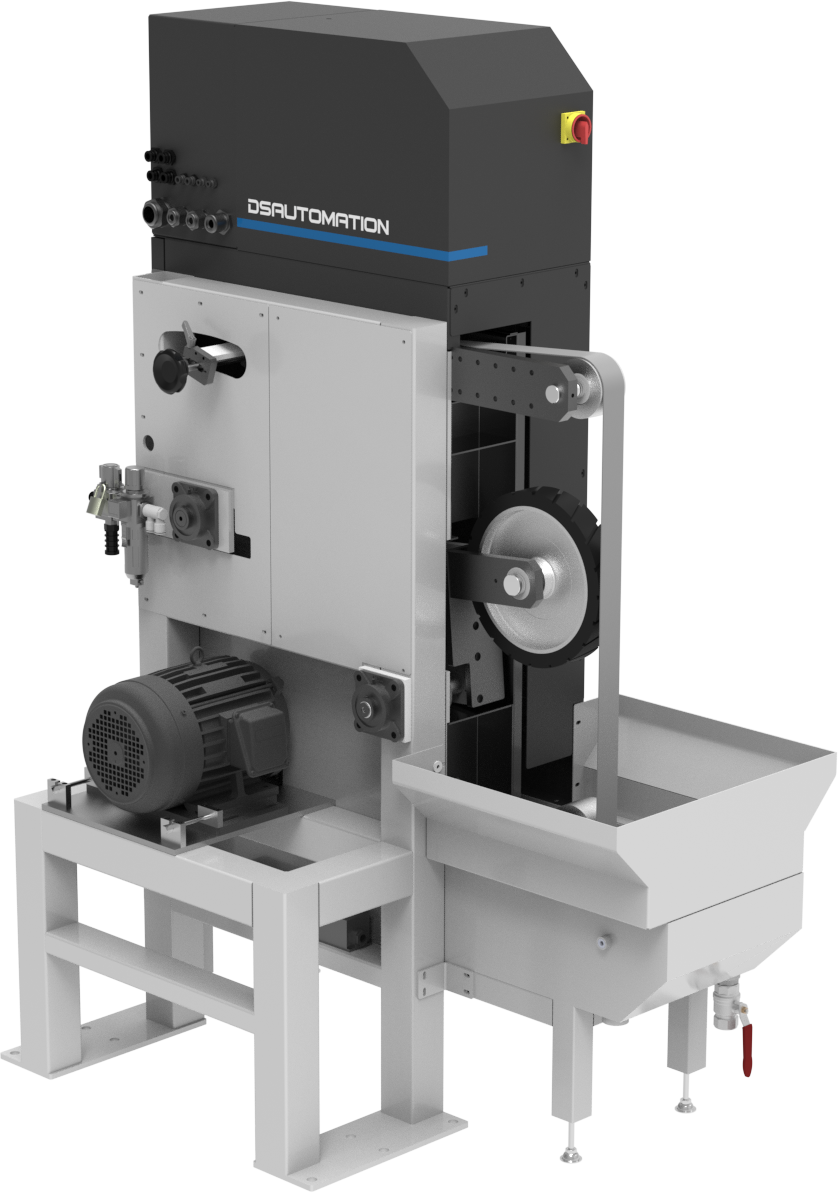

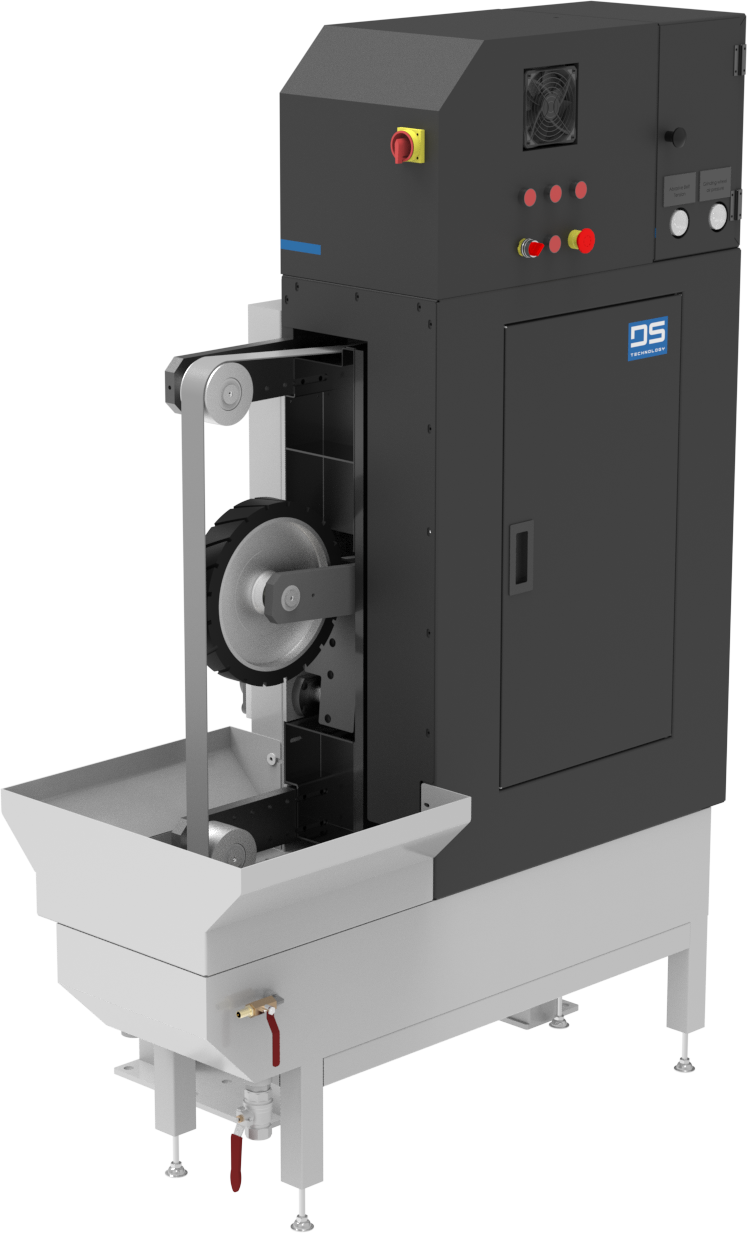

EBS ProFlex 3K-C features programmable control, allowing users to seamlessly switch between compliance force rubber wheel-assisted belt grinding and belt-only grinding modes. Equipped with an advanced compliance force control system, it ensures uniform and stable grinding performance, meeting diverse automated grinding needs. The system is user-friendly and suitable for a wide range of industrial applications.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Variable Compliance Belt Grinder |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 3.7KW |

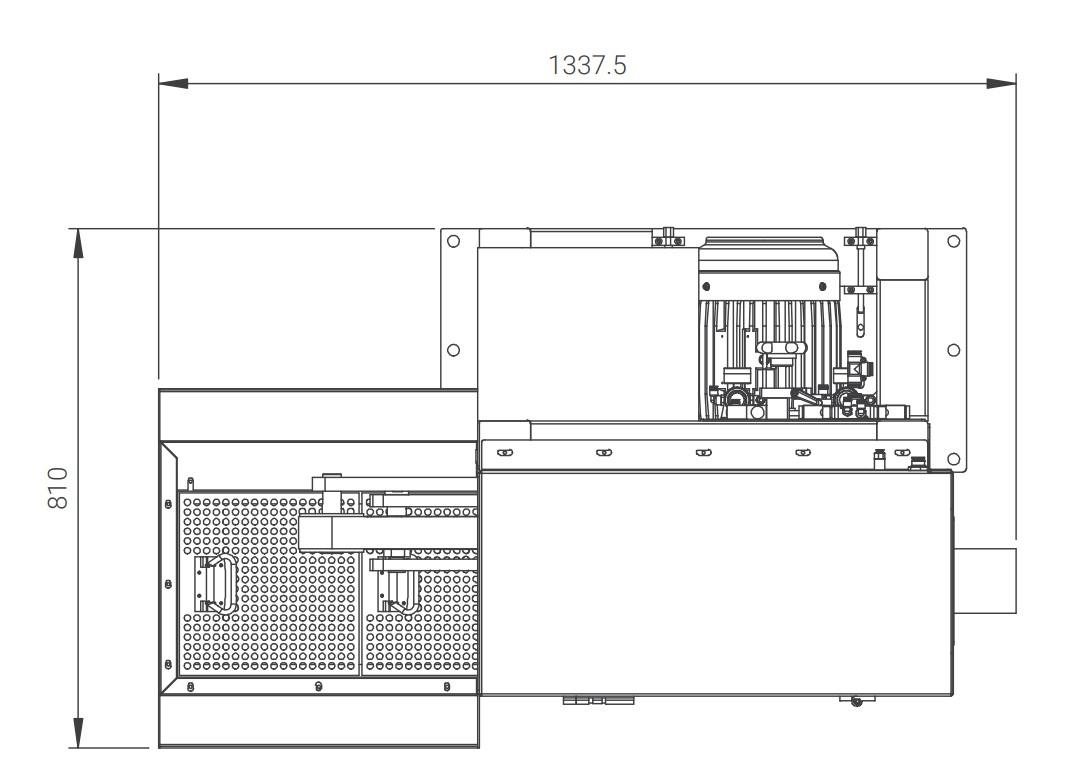

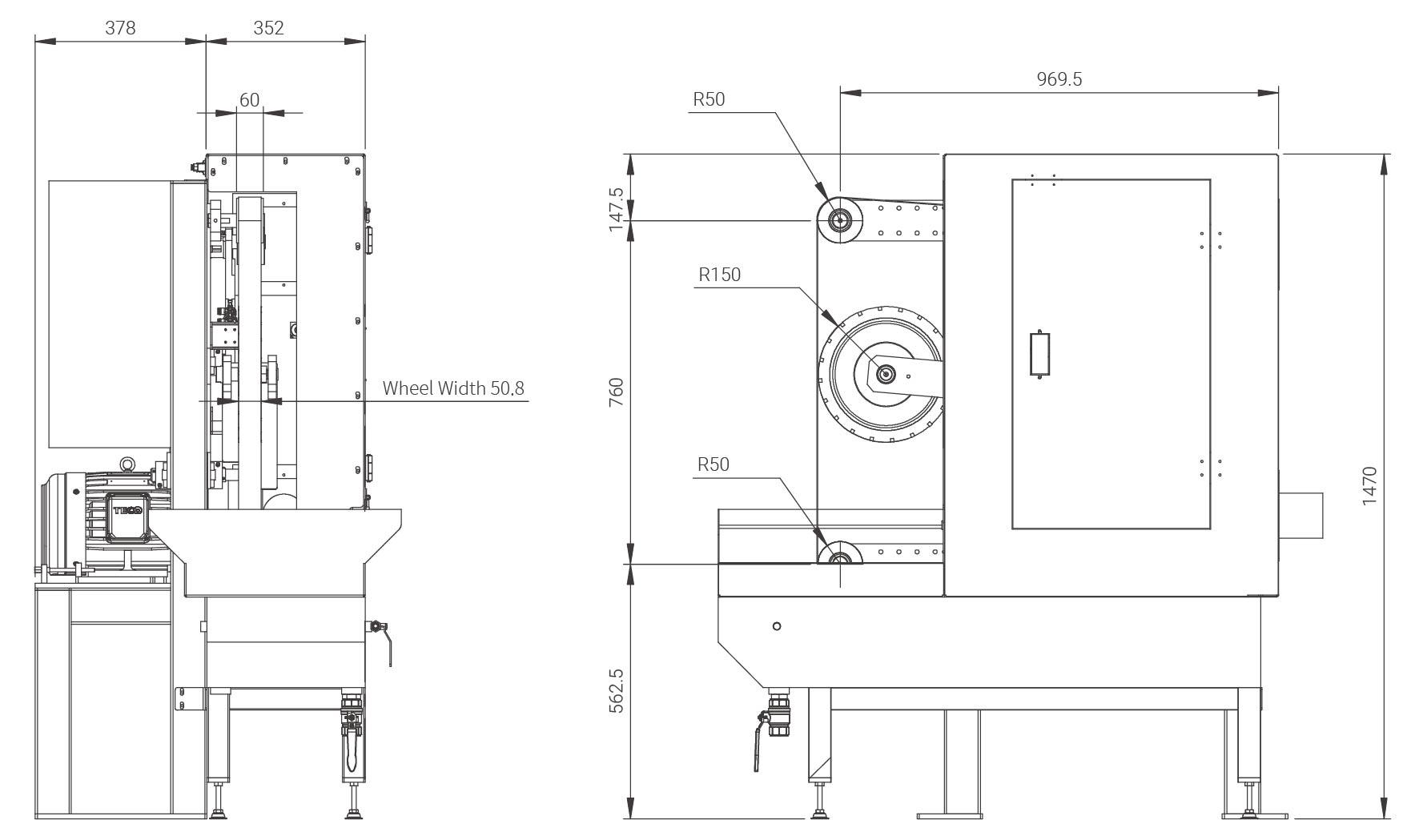

| Dimensions (Length, Width, Height) | 1338 x 810 x 1470 mm (52.7 x 31.9 x 57.9 in) |
| Weight | 320 kg (705.5 lbs) |

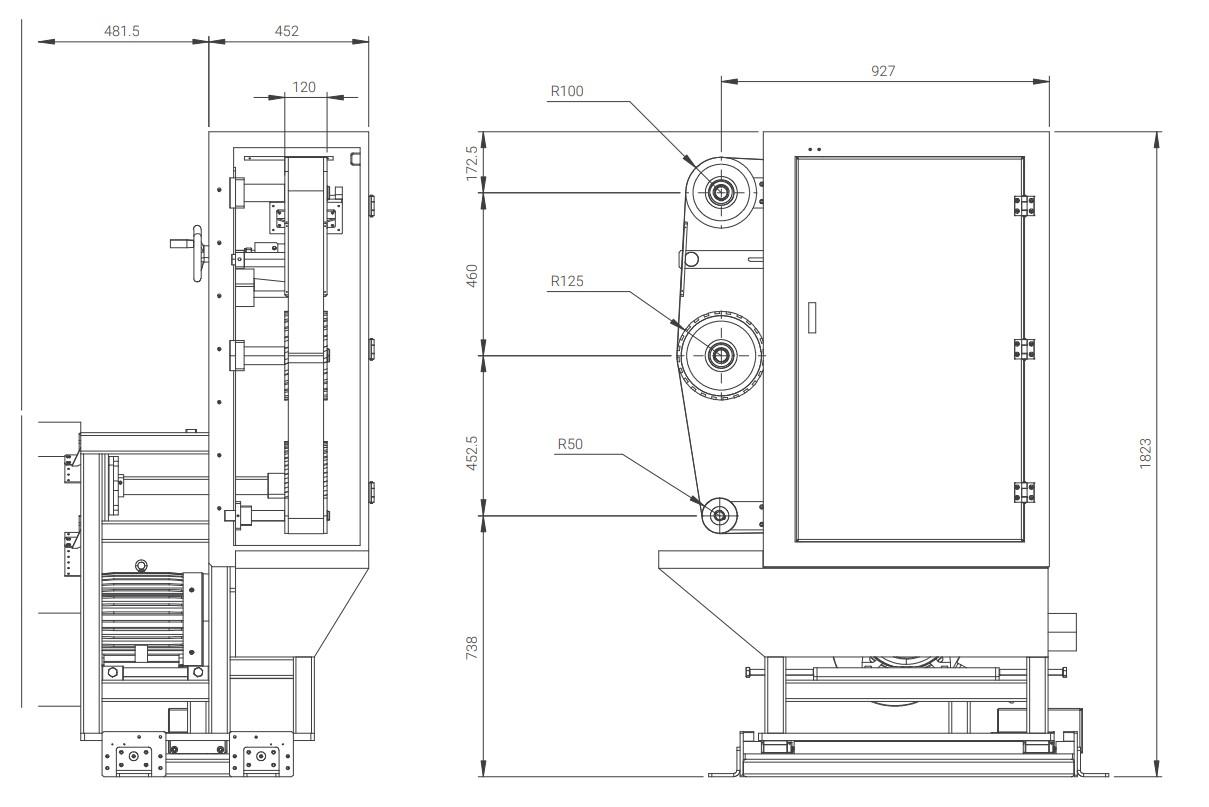

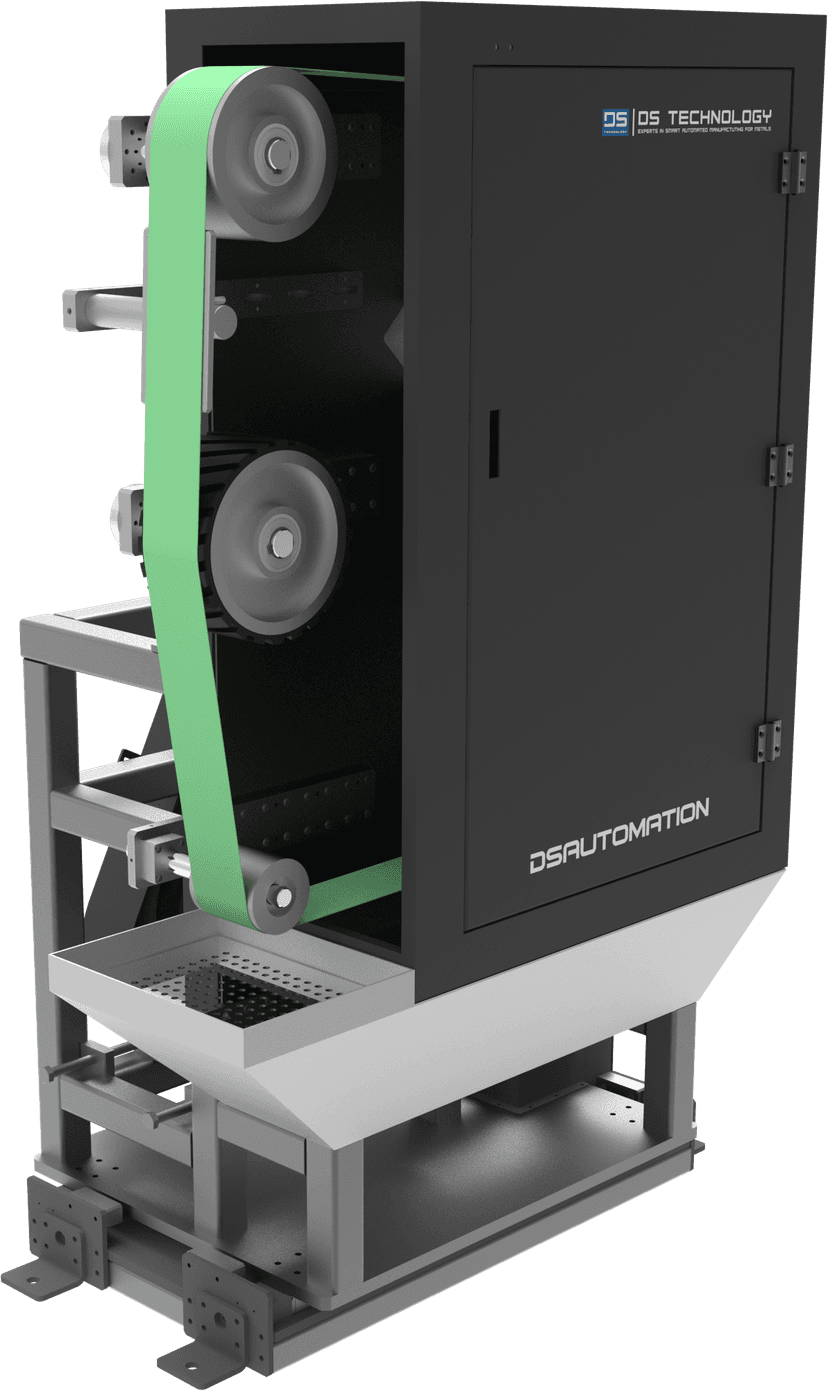

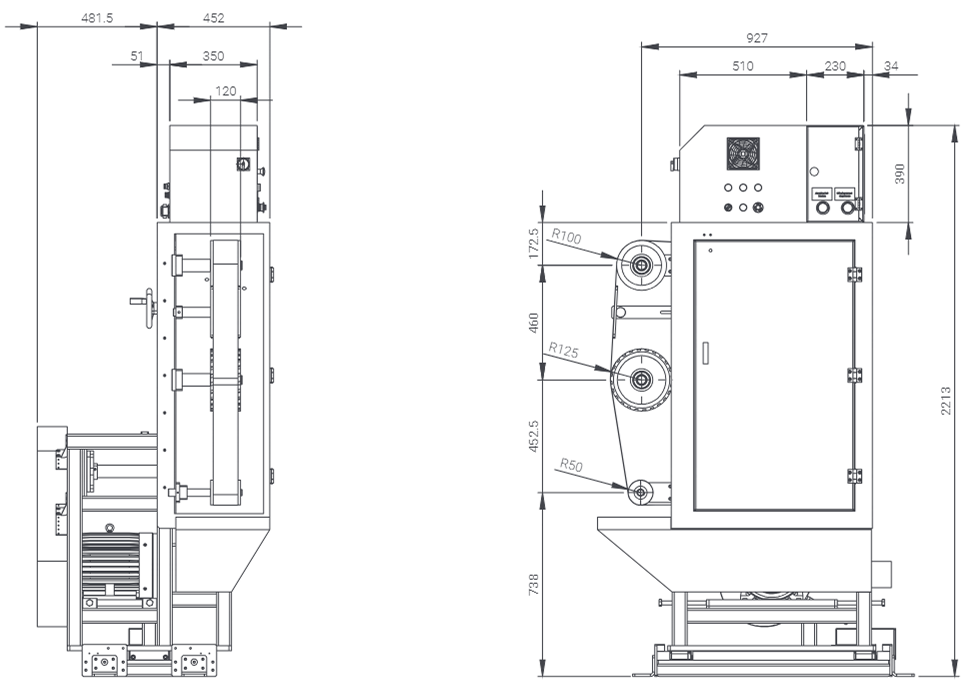

The EBS HeavyGrind 7K features a powerful 7500W motor, engineered for heavy-duty coarse grinding applications. Equipped with a high-performance drive system and precise belt tension control, it ensures stable and consistent belt operation during large-area continuous processing. Ideal for aggressive material removal, rough surface treatment, and large-scale preliminary grinding, it significantly improves productivity and processing quality. Widely used in heavy industry manufacturing, steel, casting, and metalworking sectors.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Heavy-Duty Belt Grinder |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 7.5KW |
| Dimensions (Length, Width, Height) | 1273 x 934 x 2213 mm (50.1 x 36.7 x 87.1 in) |
| Weight | 787 kg (1735.2 lbs) |

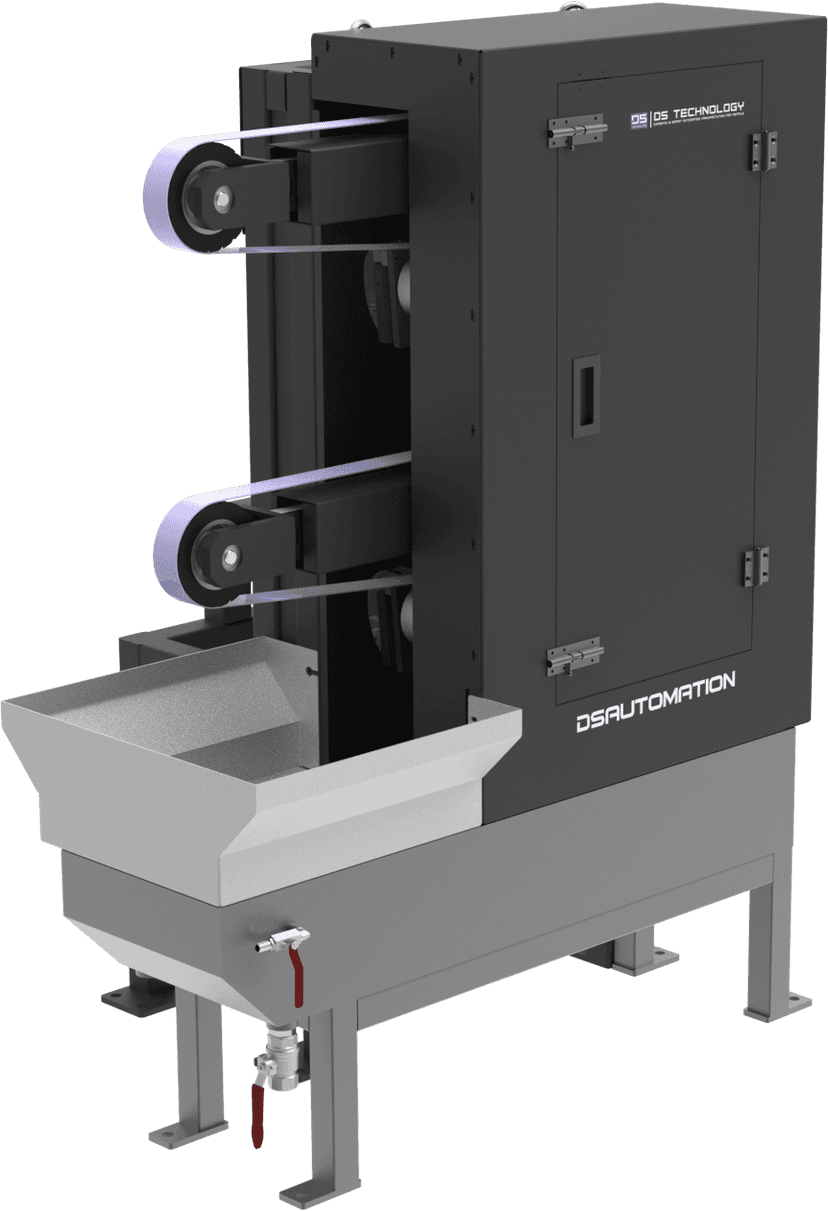

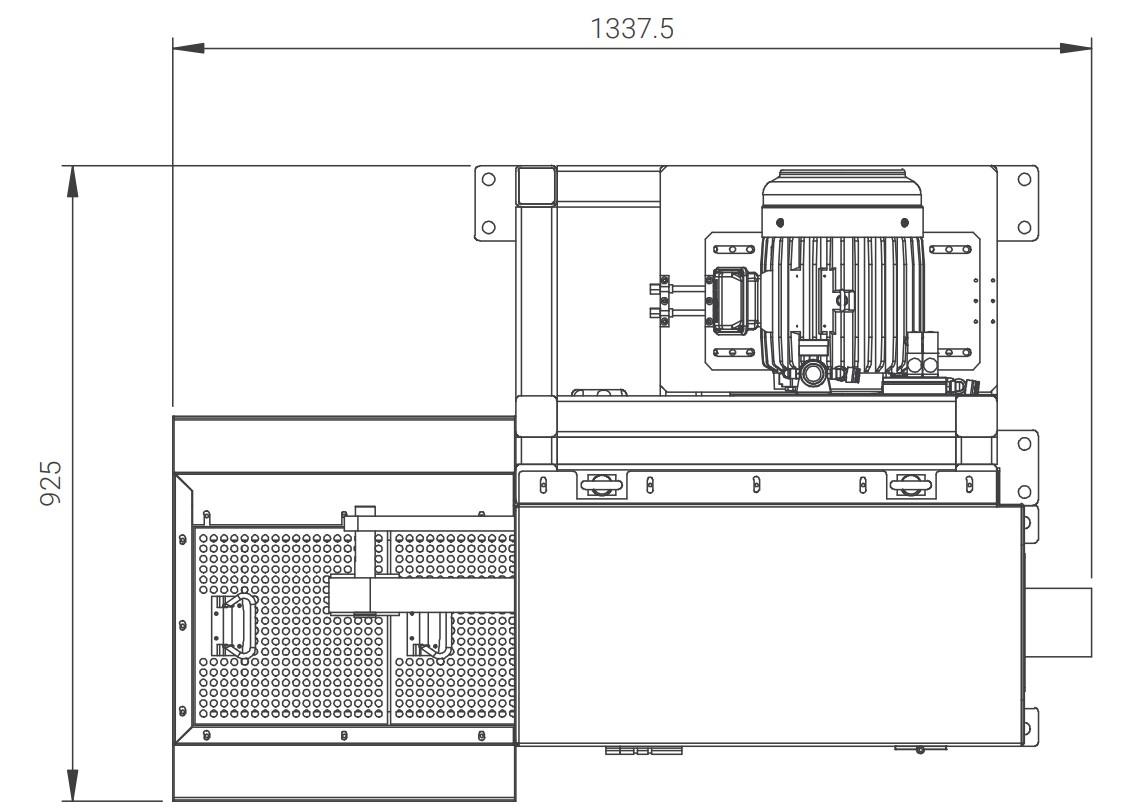

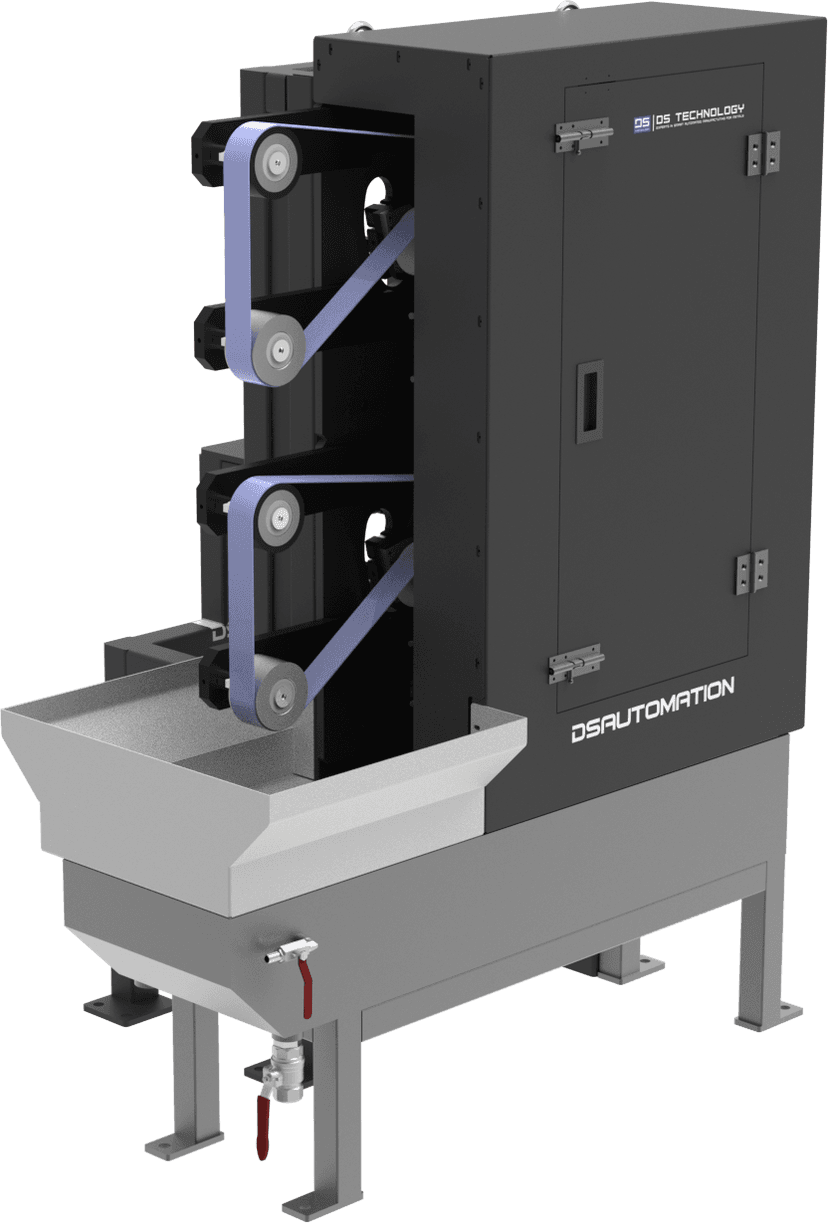

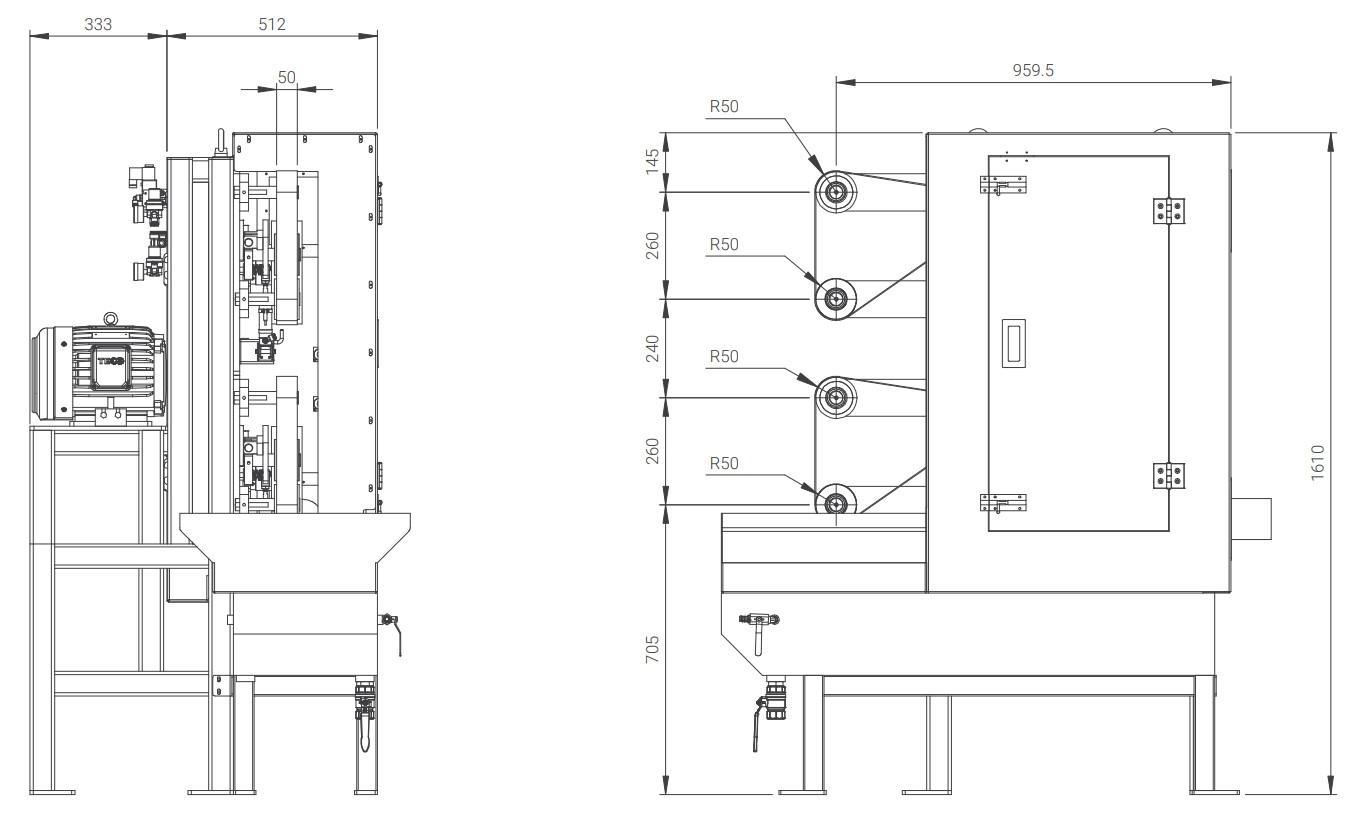

EBS DuoBelt 3K features a dual belt system capable of accommodating two different types of belts simultaneously, enabling fast switching and seamless multi-step processing. Equipped with a high-efficiency drive and precise tension control, it ensures stable belt operation and extended belt life. Its versatile design supports grinding, deburring, and polishing, making it ideal for automotive, aerospace, machinery manufacturing, and furniture industries.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Belt Grinder |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 3.7KW |

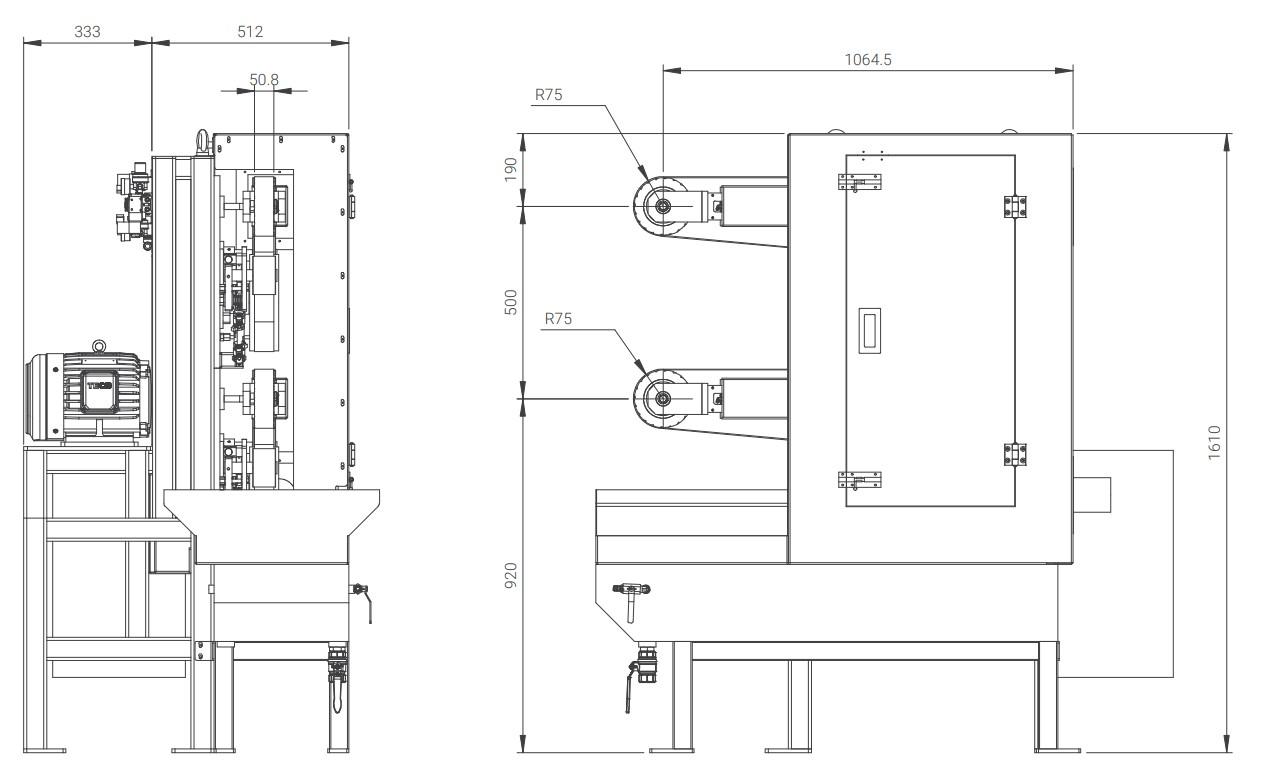

| Dimensions (Length, Width, Height) | 1338 x 925 x 1610 mm (52.7 x 36.4 x 63.4 in) |
| Weight | 385 kg (849.8 lbs) |

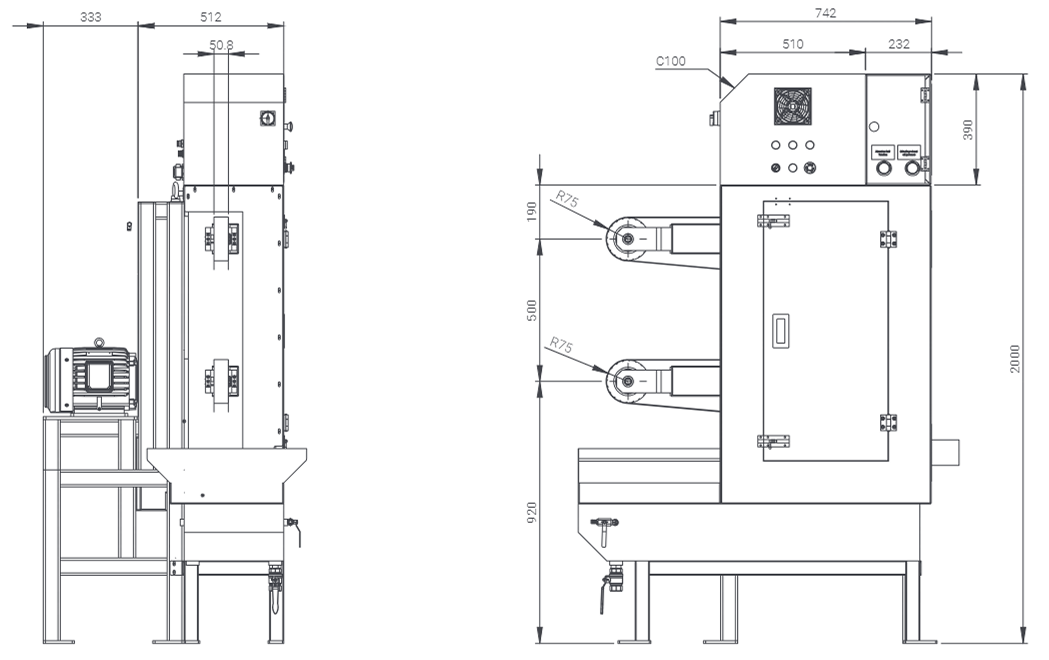

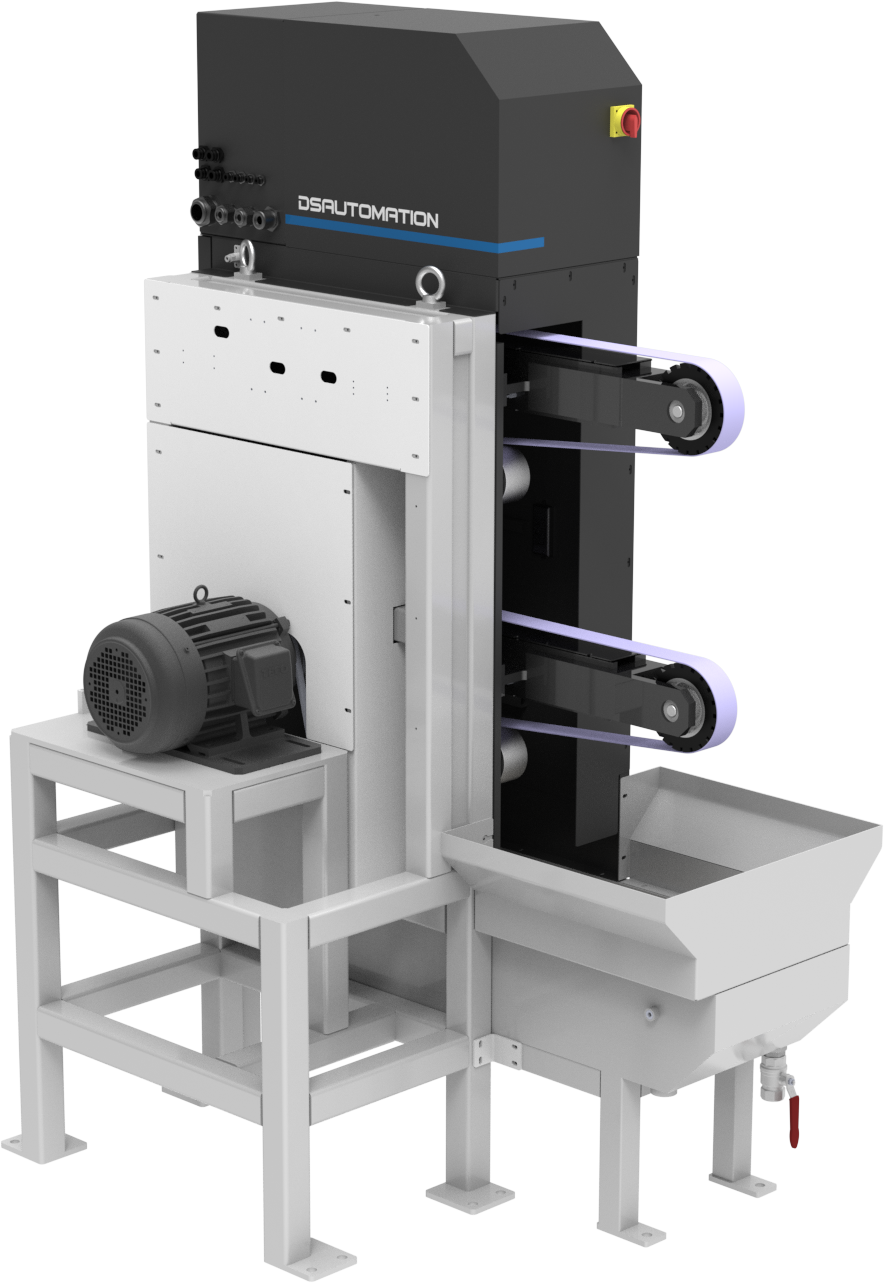

The EBS DuoFlex 3K features a dual compliance force belt grinding wheel design, engineered for precision grinding and moderate material removal applications. Equipped with an intelligent compliance control system, it automatically adjusts grinding pressure to deliver uniform and consistent results, effectively enhancing processing quality and efficiency. Suitable for a variety of industrial environments.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Grinding Wheel Belt Grinder |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1338 x 925 x 2000 mm (52.68 x 36.42 x 78.74 in) |
| Weight | 492 kg (1084.6 lb) |

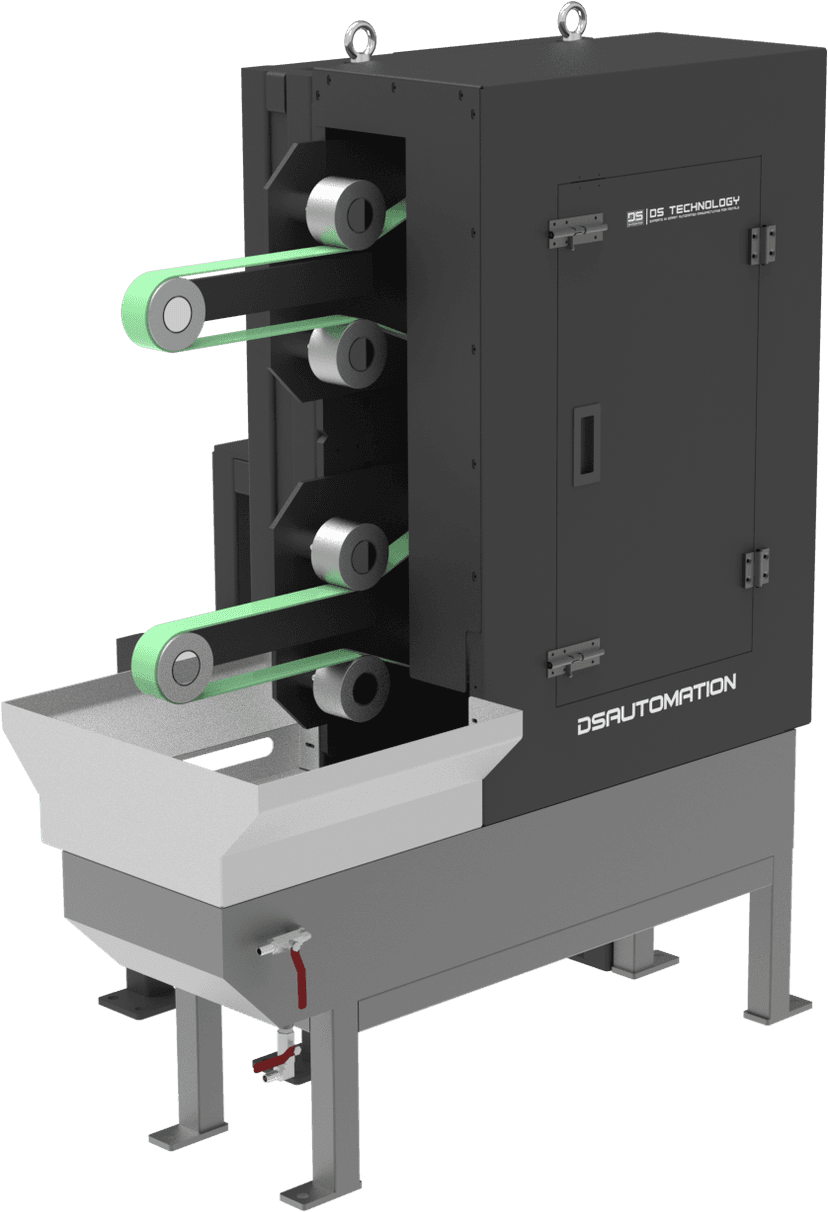

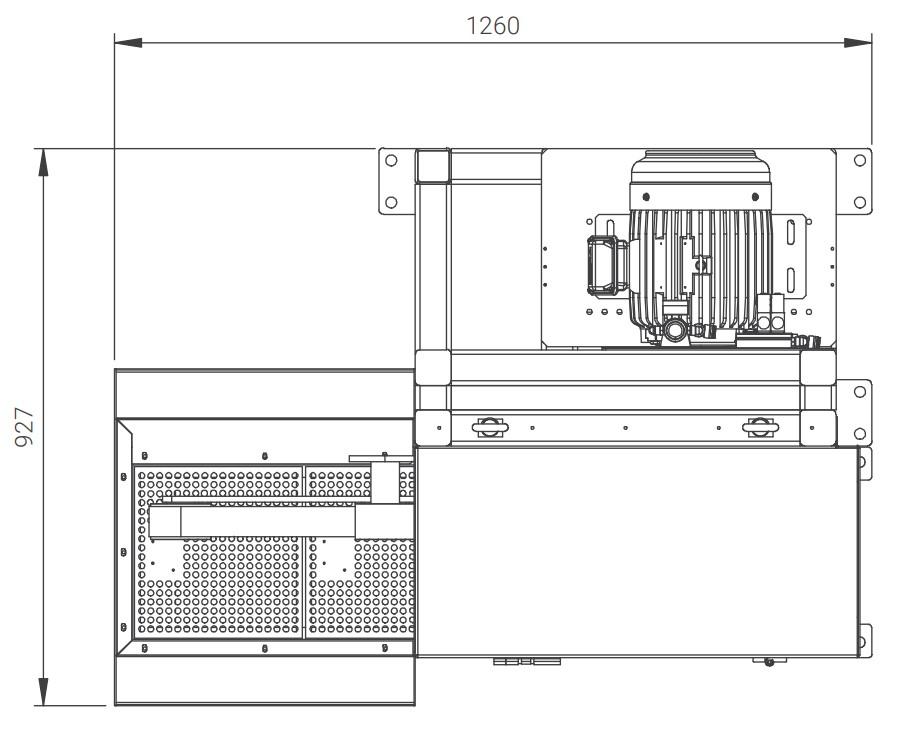

EBS DuoFlex‑S 3K features dual 25mm belts with mini compliance grinding wheels, precisely adapting to complex contours and tight spaces. Real-time compliance pressure control prevents interference and over-grinding, while fast belt switching increases productivity. Its modular design ensures easy robot integration, making it ideal for high-precision internal and contour finishing.
Aluminum, copper, steel, cast iron, stainless steel, hard metals, plastic, composite materials, wood.
| Functions | Dual Small Grinding Wheel Belt Grinder |
| Oscillating Speed | 1700 RPM |
| Power Consumption | 3.7KW |
| Dimensions (Length, Width, Height) | 1260 x 927 x 1954 mm (49.6 x 36.5 x 76.93 in) |
| Weight | 360 kg (793.7 lb) |
