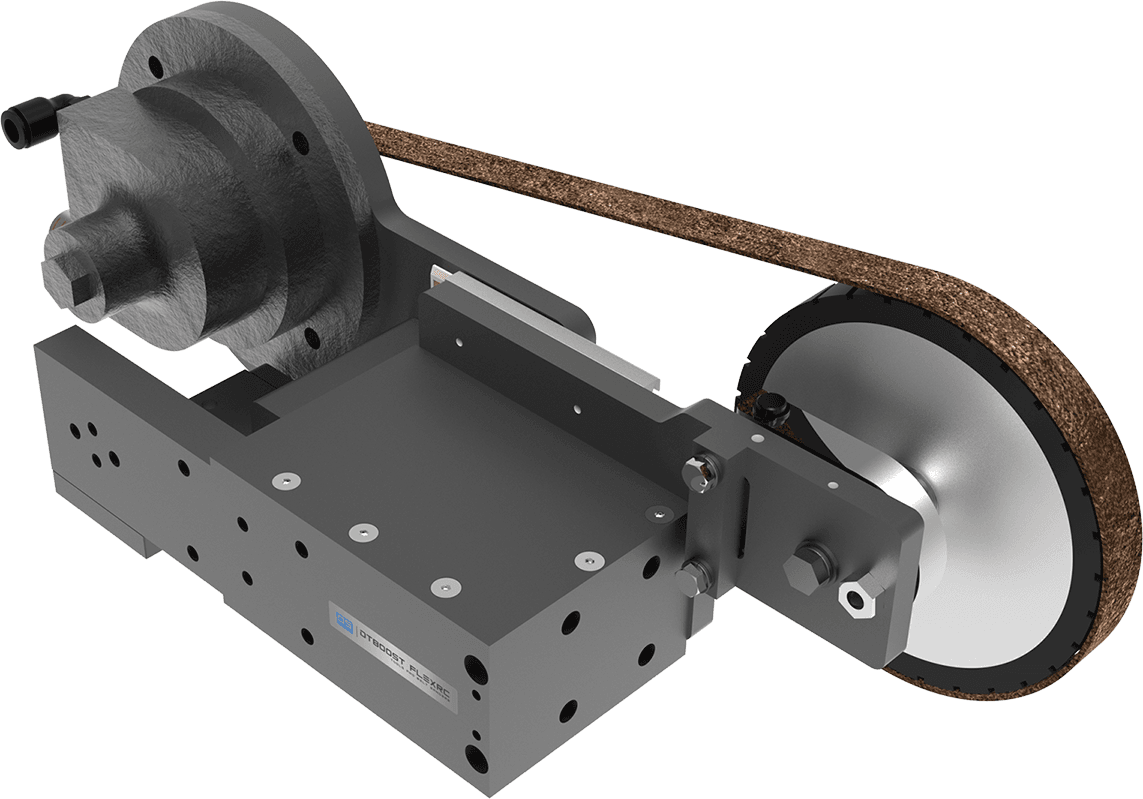

BS800 is a high performance belt grinding compliance force tool designed for fast and consistent material removal across large surface areas. It delivers powerful and stable operation, making it ideal for finishing both metallic and non-metallic materials. When integrated with robotic end effectors, it is purpose built for long duration high volume grinding tasks and significantly improves automation efficiency and surface consistency. BS800 also supports the ABSC4-RTH automatic belt change system, enabling smooth transitions between abrasive belts for continuous multi step processing.
Good for fine finishing of metal surfaces including scratches
Aluminum, copper, steel, cast iron, stainless steel, plastic, composite materials, and wood.
| Functions | Small Sanding Belt |
| Collet Size | Sanding Belt Width 20mm |
| Compliant Pressure | N/A |
| Compliant Stroke | N/A |
| Compliant Force | N/A |
| Power | N/A |
| Spindle Pressure | 0.6MPa (6bar) |
| Weight | 8.6kg (18.96 lbs) |

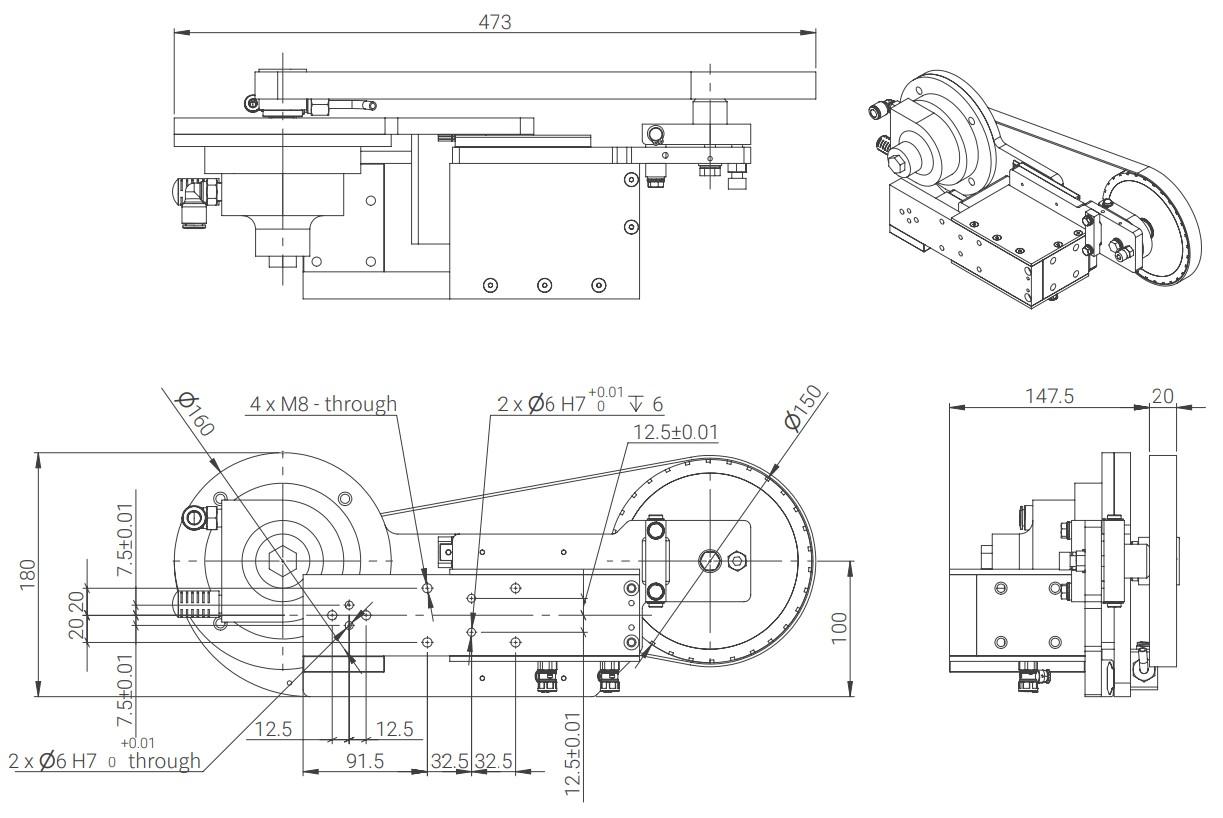

| Dimensions (L x W x H) | 473 x 167.5 x 180 mm (18.62 x 6.59 x 7.09 in) |
| Speed | 3000 RPM |
| Air Consumption | 850LPM (L/min) |
